1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist
1.5m Wide 0.45mm Silicone Coated Fiberglass Fabric 80g Single Side Chemical Resist
Silicone cloth is divided into single-sided coating and double-sided coating. UPSE-8732S80 is the 80g single-sided silicone glass fiber, which has the same properties as double-sided.
It is can be customized into different weight and material (PU,PVC,Acrylic etc.) according to customer's application.
E-glass fiber is an inorganic non-metallic material with excellent properties.The R2O content is less than 0.8%. It has excellent properties like good chemical stability, electrical insulation properties and high strength. Mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.
Product quality can be promised if you choose Unionfull, as we are the winner of IMO.
UPSE-8732S80 meets the request as below:
Material: Fabric:100% E-glass fiber
Pattern:Silicone Rubber Coated
Coating side: 80g on one side
Thickness:0.45mm
Weight: 510g
Length: 50m/roll
Width: 1.5m
Temperature: Fiberglass cloth ≤ 550℃
Silicone coating ≤ 260℃
Type: E-glass(Alkali free)
Feature: High Temp. resist, Chemical resistant, Fire Protection
Properties:
1.Fire Protection
Flammability ≤25%
2.High strength, soft and tough
3.Low thermal conductivity,0.035W/M·K—0.045 W/M·K±0.005(room temperature)
4.Good chemical resistant
Corrosion resistant to strong acids, alkalis, aqua regia and various organic solvents
5.Heat Resistant
Can withstand of temperature -70℃ to 260℃
6.Good dielectric properties
Application:
1.It is a fantasy protection thing for the public security fire safety key unit. When it is used for construction in public places such as large shopping malls, supermarkets, hotels, etc., such as welding, cutting, etc.: using fire blanket can directly reduce spark splash, which will be flammable, Isolation and blocking of explosive risk
2.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
3.Glass fiber cloth is mostly used in hand lay-up process. Glass fiber cloth is mainly used in hull, storage tank, cooling tower, ship, vehicle, tank and so on.
4.In the transportation industry, buses, yachts, tankers, cars, etc. are used.
5.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.
Data:
| Main Specifications | |||||
| Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
| UPSE-8732S40 | 480 | 0.43 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732S80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D160 | 590 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
| UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D200 | 1050 | 1.00 | 1/1.5 | grey,red,white | 2 |

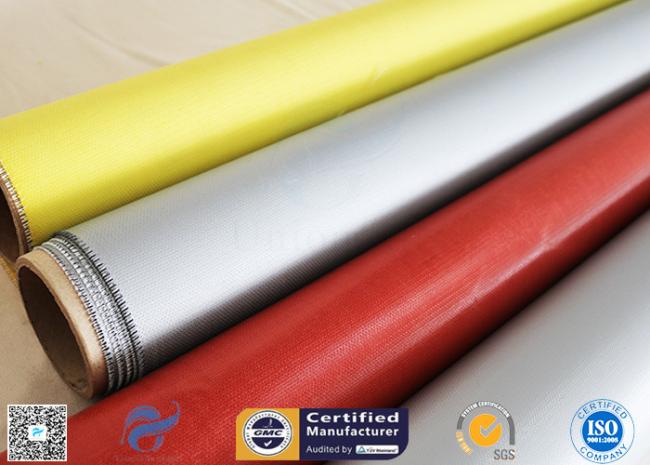

Pictures:
