IMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding Curtain
IMO Testing Fireproof 510g Silicone Coated Fiberglass Fabric 1*50m Welding Curtain
UnionfullTM's Silicone coated fiberglass fabric is made from woven fiberglass fabric and then coated with silicone/rubber. Fiberglass fabric is a light weight material which has moderate tensile and compressive strength.
Our product quality is guaranteed as approved by ISO9001,SGS, TUV, and we are also the winner of the IMO rules:
.Flame Spread Testing
.Smoke & Toxicity Testing
.Non-Combustibility Testing
UPSE-8732S80 meets the following requirements:
Material: Fabric:100% E-glass fiber
Pattern:Silicone Rubber Coated
Coating side: Single-side
Coating Weight: 80g
Total Weight: 510g
Length: 50m/roll
Width: 1.5m
Flammable: ≤25%
Temperature: Fiberglass cloth ≤ 550℃
Silicone coating ≤ 260℃
Type: E-glass(Alkali free)
Feature: High Temp. resist, Chemical resistant, Fire Protection
Properties:
1.Good chemical resistant
Corrosion resistant to aqua regia, strong acids, alkalis etc.
2.Good weather ability
2.High strength, soft and tough,has good mechanical properties
3.Low thermal conductivity,0.035W/M·K—0.045 W/M·K±0.005(room temperature)
4.Good insulation
With high insulation properties, UV protection, anti-static.
5.Heat Resistant
Can withstand of temperature -70℃ to 260℃
6.Excellent Electrical Insulation
Main Applications:
-Fire doors & Fire curtains
-Fabric ductwork connector
-Insulation jackets, mattress and pad
-Welding/fire blankets
-Other fire control systems
-Fabric expansion joints
Data:
| Main Specifications | |||||
| Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
| UPSE-8732S40 | 480 | 0.43 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732S80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D160 | 590 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
| UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D200 | 1050 | 1.00 | 1/1.5 | grey,red,white | 2 |

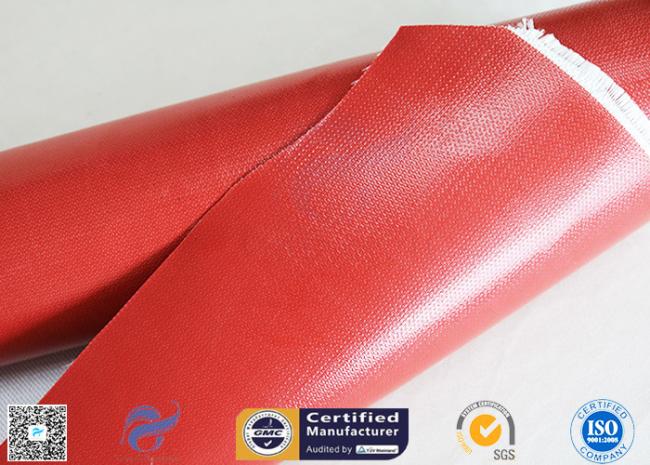

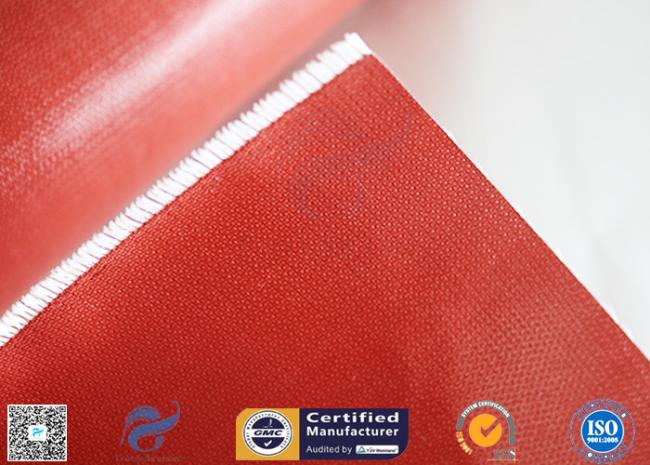

Pictures:
Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd
