E - Glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric Gray
E-glass Electrical Resistant 80/80g 0.45mm Silicone Coated Fiberglass Fabric Gray
The products are made of fine fiberglass with excellent capacity of high temperature and corrosion resistance, coated with silicone rubber, which is a brand new product with good performance and multiple applications. On request, one side or both sides silicone coated products are both available, customers color available.
UPSE-8732D160 has the following features:
Material: Fabric:100% E-glass fiber
Coating:Silicone Rubber
Structure:3 layers--Silicone+Glass fiber+Silicone
Coating side: Two sides
Coating Weight: 80g+80g
Total Weight: 590g
Length: 50m/roll
Width: 1m
Flammable: ≤25%
Temperature: Fiberglass cloth ≤ 550℃
Silicone coating ≤ 260℃
Type: E-glass(Alkali free)
Feature: High Temp. resist, Chemical resistant, Electrical resistant, Fireproof
Properties:
1.Excellent electrical insulation to meet various electrical insulation requirements
2.Flame retardant performance: non-flammable
3.High temperature up to 260℃
4.Excellent release properties
5.Outstanding thermal conductivity to meet various heat dissipation requirements
6.Good insulation
With high insulation properties, UV protection, anti-static.
7.resistant to ozone, sample, light and weather aging, excellent weather ability in the field, life service up to 10 years.
Main Applications:
1.Silicone coated fiberglass fabric is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
2.Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.
3.Silicone coated glass fiber is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
4.Temperature resistance: as fire blanket, fire curtain, temperature resistant flame retardant material
5. Other fields: Silicone rubber coated glass fiber membrane structural materials can be applied to building sealing materials, high temperature anticorrosive conveyor belts, packaging materials and other fields.
Data:
| Main Specifications | |||||
| Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
| UPSE-8732S40 | 480 | 0.43 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732S80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D160 | 590 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
| UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D200 | 1050 | 1.00 | 1/1.5 | grey,red,white | 2 |

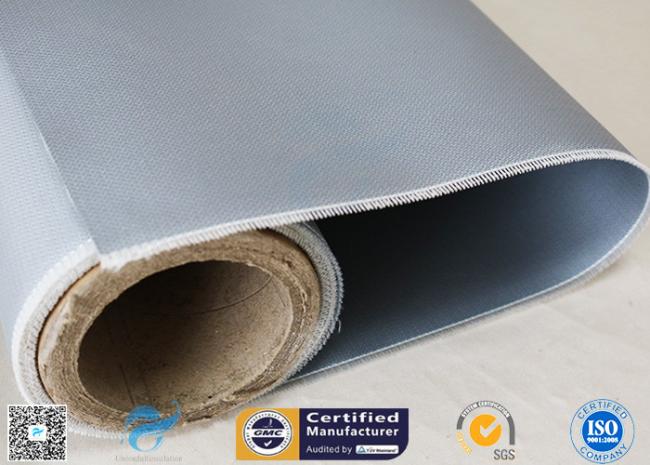

Pictures:
