Thermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass Fabric
Thermal Insulation 260℃ High Temp.Resist 20.8oz Silicone Coated Fiberglass Fabric
UnionfullTM's Silicone coated fiberglass fabric is made from woven fiberglass fabric and then coated with silicone/rubber. Fiberglass fabric is a light weight material which has moderate tensile and compressive strength. This cloth has been used in many industrial fields.
Properties:
1.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time
2.Non-flammable
3.Fire prevention
The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
4.Low friction coefficient is the best choice for oil-free self-lubrication.
5.Anti-ripper
It does not require reinforcement for natural tear resistance, has significant wind resistance and is subject to frequent mechanical properties.
6.With high insulation properties, UV protection, anti-static.
Descriptions:
| Item Name | Silicone Coated Fiberglass Fabric |
| Products Code | UPSE-8732D160 |
| Material |
Fabric:100% E-glass fiber Pattern:Silicone Coated Structure:3 layers--Silicone+Glass fiber+Silicone |
| Weight(g/m2) | 590g/m2 (430g+80g+80g) |
| Width | 1500mm |
| Thickness | 0.45mm |
| Color | Gray |
| Length | 50m/roll |
| Ends Warp/Weft(cm) | 17.4/14 |
| Tensile Strength(N/MM) | 270/170 |
| Temperature | Fiberglass cloth ≤ 550℃
Silicone coating ≤ 260℃ |
Data:
| Main Specifications | |||||
| Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
| UPSE-8732S40 | 480 | 0.43 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732S80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D160 | 590 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
| UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D200 | 1050 | 1.00 | 1/1.5 | grey,red,white | 2 |
Main Applications:
1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.
2.Construction: Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
3.Silicone coated fiberglass fabric is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
4.It is a fantasy protection thing for the public security fire safety key unit. When it is used for construction in public places such as large shopping malls, supermarkets, hotels, etc., such as welding, cutting, etc.: using fire blanket can directly reduce spark splash, which will be flammable, Isolation and blocking of explosive risk

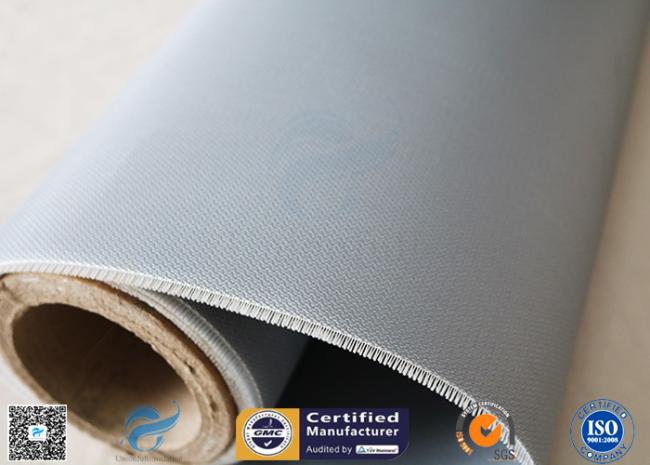

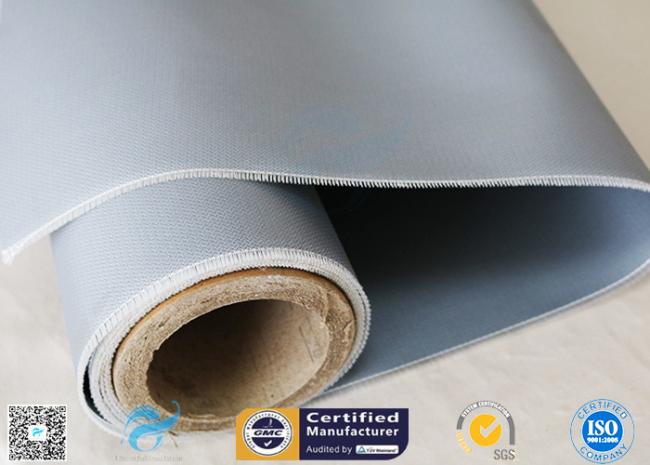

Pictures:
