Welding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mm
Welding Curtain 260℃ Heat Insulation 590g Silicone Coated Fiberglass Fabric 0.45mm
Silicone coating is durable and abrasion resistant to withstand the high temperatures heat. It adds extended life, while providing greater oil and water resistance than uncoated fabrics as well as electrical insulation. Working temperature of this coated fiberglass fabric is -70~260℃. Fiberglass fabric is able to resist 550℃ heat. It is a pefect material for thermal insulation applications.
Properties:
1.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time
2.Non-adhesive, not easy to adhere to any substance.
3.High softness, good adhesion and no chipping
4.Fire prevention
The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
5.Outstanding thermal conductivity to meet various heat dissipation requirements
6.Shade, light, ventilation
This fabric eliminates up to 80% of solar radiation, maintains indoor air circulation, and provides a clear view of the outdoor scene.
7.High Temperature Resistance
Can withstand of high temperature 260℃, low temperature -70℃
Descriptions:
| Item Name | Silicone Coated Fiberglass Fabric |
| Products Code | UPSE-8732D160 |
| Material |
Fabric:100% E-glass fiber Pattern:Silicone Coated Structure:3 layers--Silicone+Glass fiber+Silicone |
| Weight(g/m2) | 590g/m2 (430g+80g+80g) |
| Width | 1500mm |
| Thickness | 0.45mm |
| Color | Gray |
| Length | 50m/roll |
| Ends Warp/Weft(cm) | 17.4/14 |
| Tensile Strength(N/MM) | 270/170 |
| Temperature | Fiberglass cloth ≤ 550℃
Silicone coating ≤ 260℃ |
Data:
| Main Specifications | |||||
| Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
| UPSE-8732S40 | 480 | 0.43 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732S80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D160 | 590 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
| UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D200 | 1050 | 1.00 | 1/1.5 | grey,red,white | 2 |
Main Applications:
1.Electrical insulation
Silicone rubber coated glass fiber membrane structural material, with high electrical insulation grade, can withstand high voltage load, can be made into insulation cloth, casing and other products.
2.Silicone coated fiberglass fabric is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
3.Anti-corrosion sector: silicone fiberglass fabric is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.
4.Silicone coated glass fiber is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
5. Apart from above application, silicone fiberglass fabric can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material.

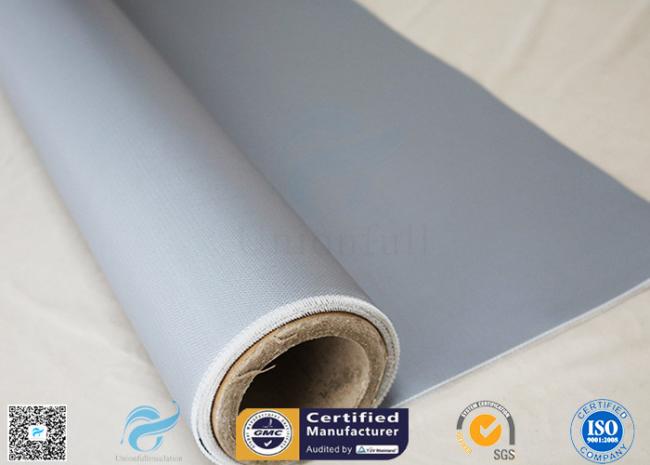

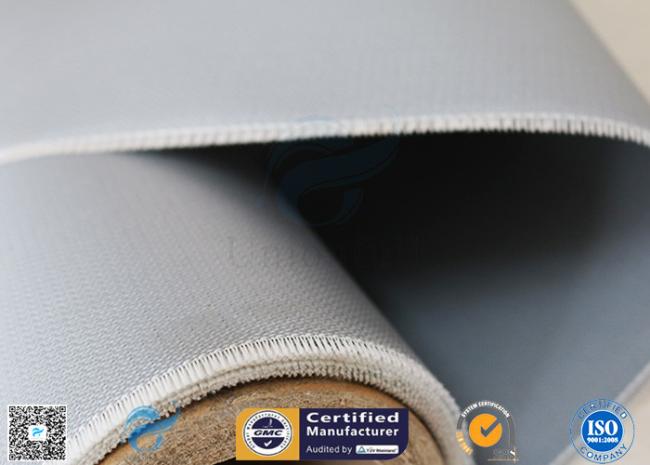

Pictures:
