Removable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass Fabric
Removable Insulation Jacket 0.45mm Red Color 510g Silicone Coated Fiberglass Fabric
Silicone coating is durable and abrasion resistant to withstand the high temperatures heat.The working temperature can be from -70℃ to 260℃, so it is used to be made insulation jacket, fire blanket etc.
UPSE-8732D80 is made of E-glass fiber cloth which R2O content is less than 0.8%, this type of fabric is more softness and tough. It is mainly used as electrical insulation materials, glass fiber reinforced materials and tire cords.
Description of UPSE-8732D80 are as below:
Material: E-glass fiber
Coating: Red Silicone Rubber
Coating side: 2 sides
Coating Weight: 40g+40g
Thickness: 0.45mm
Total Weight: 510g
Length: 50m/roll
Flammable: ≤25%
Temperature: Fiberglass cloth ≤ 550℃
Silicone coating ≤ 260℃
Weave pattern: 4HS
Feature: High Temp. resist, Chemical resistant, good indulation properties, High strength
Data Sheet:
| Main Specifications | |||||
| Code |
Weight (g/m2) |
Thickness (mm) |
Width(m) | Color | Coating sides |
| UPSE-8732S40 | 480 | 0.43 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732S80 | 510 | 0.45 | 1/1.2/1.5 | grey,red,white | 1 |
| UPSE-8732D160 | 590 | 0.45 | 1/1.2/1.5 | grey,red,white | 2 |
| UPSE-8784S40 | 890 | 0.8 | 1/1.5 | grey,red,white | 1 |
| UPSE-8784D80 | 930 | 0.8 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D160 | 1010 | 1.00 | 1/1.5 | grey,red,white | 2 |
| UPSE-8784D200 | 1050 | 1.00 | 1/1.5 | grey,red,white | 2 |
Properties:
1.With high insulation properties, UV protection, anti-static.
2.Non-adhesive, not easy to adhere to any substance
3.Durable, abrasion resistant
4.Excellent high temperature insulation performance
5.This fabric eliminates up to 80% of solar radiation, maintains indoor air circulation, and provides a clear view of the outdoor scene.
6.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.
7.Fire prevention
Fiberglass fabrics have flame retardant properties not found in other fabrics. The real fiberglass fabric, after the fire, because the inner skeleton of the fabric is glass fiber, it will not be deformed and will not be charred.
Application:
1.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
2.In the petrochemical industry, pipes, corrosion-resistant materials, storage tanks, acid, alkali, and organic solvents are used.
3.Application in filtration: gas filtration and liquid filtration
4.In the mechanical industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, and the like are applied.
5.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.

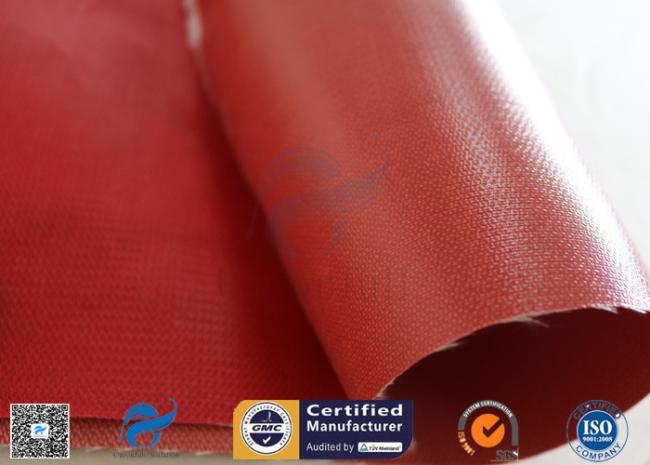

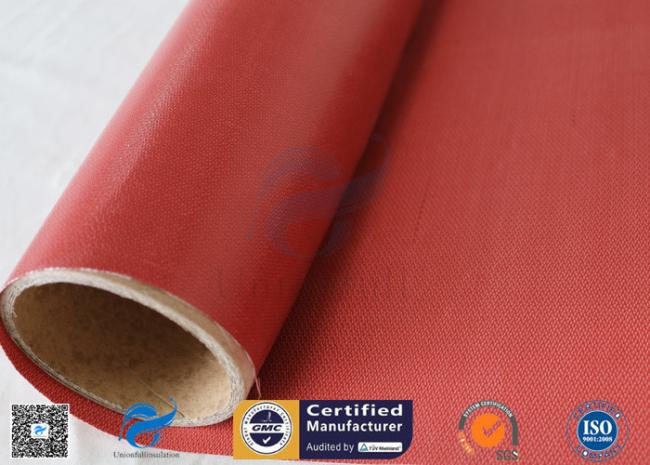

Pictures:
