Double Sides Grey Silicone Rubber Coated Fiberglass Fabric E Glass Satin Weave
E Glass Satin Weave Double Sides Grey Silicone Coated Fiberglass Fabric
Introduce
Silicone coated fiberglass cloth has good resistance to extreme temperatures, operate temp. from -50°C to +260°C.
It also has excellent weatherproof, water repellent, good chemical resistance to acids and lye, good mechanical properties for make-up.
We provide 1 side and 2 sides silicone coated fiberglass cloth with different coating weight, colors and widths for difference applications.
Data
| Item | Technical Requirement | |
| Thickness of raw fabric(mm) | 0.43±0.02 | |
| Width(mm) | 1.0m,1.2m,1.5m | |
| Length(m/roll) | 50m, 100m | |
| Area Weight of raw fabric(g/m2) | 430 | |
| Warp/weft yarn density(ends/cm) | 18x13±1 | |
| Weaving structure | Satin | |
| Color of coating | gray | |
| Area weight of silicon rubber coated (g/m2) | 160 | |
| Total area weight after coated (g/m2) | 590 | |
| Maximum heat resistance for base fiberglass fabric(ºC) | 550ºC | |
| Maximum heat resistance for the silicon rubber coating(ºC) | 260ºC | |
| Tensile strength (N/5cm) | warp | 6000N/5CM |
| weft | 4500N/5CM | |
Main Features
-Excellent release properties
-High strength and tear resistance
-High dielectric strength
-High resistance to wear and flexing
-High chemical resistance, impervious to mild alkalies, non-oxidizing acids, most salts, mineral and lubricating oils, air, moisture and sunlight
-Operating temperature range from -50°C to +260°C
-Non-toxic odorless and tasteless
Applications
1. Insulation jackets, mattress and pad
2. Fabric expansion joints
3. Fabric ductwork connector
4. Fire doors & Fire curtains
5. Welding/fire blankets
6. Other fire control systems

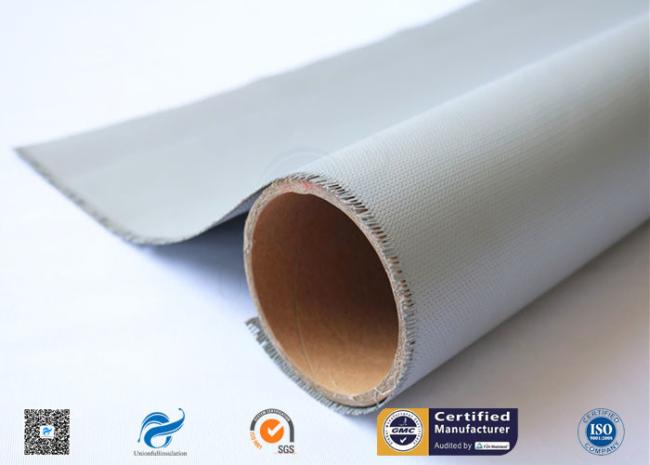

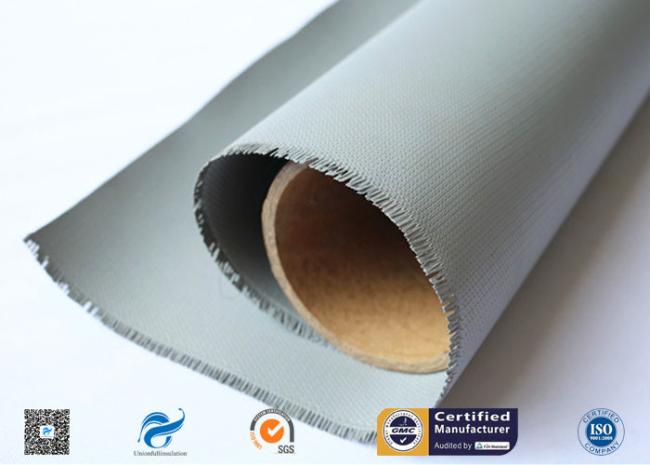

Pictures
