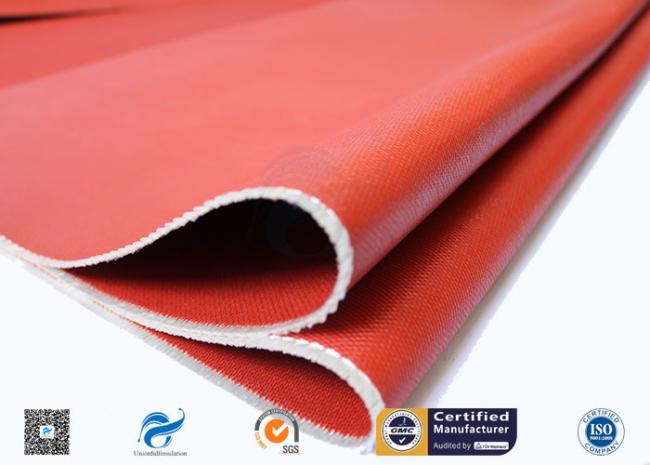

3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover
3784 C Glass Red Silicone Coated Fiberglass Cloth Thermal Insulation Cover
Introduce
Heat insulation material thermal insulation silicone fabric is a kind of high performance and multifunction composite materials, it's widely used in Aerospace, Chemical, Petroleum, Large Power Generation Equipment, Machinery, Metallurgy, Electrical Insulation, Building, Transportation and other fields.
Data
| Weight | 1000g/m2 |
| Thickness | 0.85 mm |
| Width | 1m |
| Coated | Silicone 2 sides |
| Color | Red |
| Fire resistance | Good |
| Working temperature | Basic fabric 550 ºC, Silicone coating 260 ºC. |
| Pattern | Satin |
| Yarn warp | EC9 68 1*2 |
| Yarn weft | EC9 68 1*2 |
| Construction warp | 18±1 ends/cm |
| Construction weft | 12.6±1 ends/cm |
| Fiberglass | C -Glass |
Features
1. Excellent heat and cold resistance (long-term working temperature from -70 to 260℃)
2. Good aging resistance
3. High strength
4. Chemical acid and alkali resistant
Main Applications
1. Heat/electrical insulation jacket
2. Laminated mat
3. Flexible duct connector
4. Hot air blower
5. Flexible duct
6. Non-metal compensator or Fabric expansion joints
7. Fireproof curtain & blanket
8. Welding blanket
9. Construction electrical protection cover
10. Other fire-control systems
