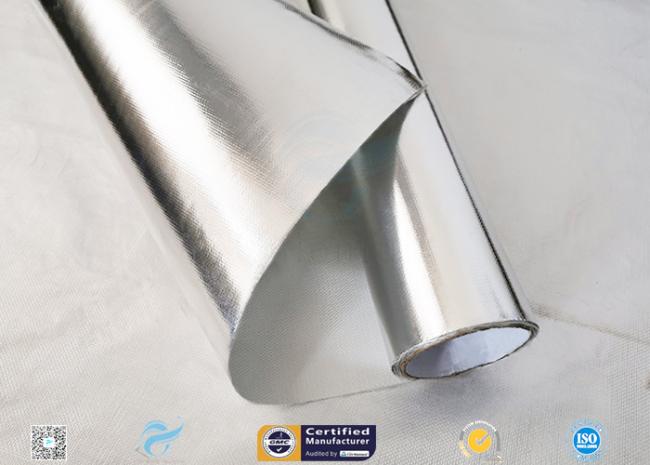

Flame Retardant 4HS SilverHeat Reflective Aluminium Foil Laminated Fiberglass Fabric

Description:

Aluminum foil coating is best for static applications and temperatures up to 300°C, this fabric will withstand short duration exposure up to 1115°F / 600°C and up to 3000°F / 1650°C for a very short durations. The aluminum coating will melts at 1220°F / 660°C.

By applying uniquely advanced compound processing and using fibreglass as the base cloth and special fire-resistant adhesive agent, our product has the excellent properties such as the smooth surface on the aluminium foil, strong light reflection, good stretching resistance in length and breadth, non-breath ability, non-breath ability, non-water permeability, good hermetic and weather resistance.

4HS weave: also called Four-Harness Satin

In this weave pattern there is a three by one interlacing, where a fill yarn floats over three warp yarns and under one.

Compared with plain weave and twill weave, it is of high density,high intensity, with a soft and loose structural weave with a good texture. It is applicable for use as a higher reinforced material in machinery.

Details of Fiberglass Fabric:

Data sheet Of UPCAL-8732:

Advantage

1. Clean, thin, light weight, good flexibility and cushioning;

2.Good stretching resistance

3.Excellent waterproof and vapor resistance

4.Cost effective and versatile

5.Non-water permeability

6.Reflects 97% radiant heat

7.Improves insulation system performance, energy saving

Main Application:

1.Heat insulation and light inflecting in construction and protection for both cold water and hot water pipe

2.Packing for special products and cold storage

3.Sound-proof materials in construction and the protective layer of super glass wool with excellent functions of fire-resistance,anti-corrosion, heat isolation and sound absorbability.

4.Electric insulation: can made into insulated fabric, sleeves, and used in places which need high electric insulation grade.
5.Anti-corrosion sector: used as external and internal corrosion proofing layer of pipeline and preservation jar, It is an ideal corrosion-proofing material.

Pictures:
