Satin Weave Silicone Coated Fiberglass Fabric 590g Fire Blanket Double Sides

Price Negotiable
Price: $2.6~$4.8/ m2
MOQ: 500mters
Delivery Time: 10 working days
Brand: Unionfull
Product Description

Satin Weave 590g Fire Blanket Double Sides Silicone Coated Fiberglass Fabric

Description:

Silicone coated fiberglass fabric has varieties advantages like: high mechanical strength,good heat and color resistance,good sealing property,resistance to many common chemical&aging
These fabrics exhibit the strength and tear resistance of the glass fibers, as well as provide excellent mold release properties. A lot of adhesive material, usually glued to PTFE, will be released from our silicone fabric. Unionfull’s silicone fabric has high dielectric strength, abrasion resistance and bending resistance, and its operating temperature range is -100 ° F to + 500 ° F.

UPSE-8732D80 is one of our main product, and also is the hot-sale among variety size as it can meet most of the industries’ demand.



Data sheet of UPSE-8732D160:

Weight


590 g/m2

Thickness


0.45 mm

Width



1000mm 1270mm 1540mm

Coated



Silicone 2 sides

Tensile strength



2000/1600(N/50mm)
Working temperature Basic fabric 550 ºC, Silicone coating 260 ºC.

Pattern



Satin

Yarn warp



ECG37 1/0

Yarn weft



ECG37 1/0

Construction warp



19.6±1 ends/cm

Construction weft



15±1 ends/cm

Yarn Type



E -Glass



Features:

Heat resistant

Chemical resistant

Superior abrasion resistance

Good heat insulation

Good chemical resistance

Good weather ability



Main Application:

1.High temperature gas,liquid,dust filter

2.Fireproof material (fireproof clothing,fire resisting curtain and so on)

3.Welding heat insulation protection material

4.Noise reduction,insulation exhaust filter of the auto and motorcycle

5.Heat-preservation and ablation materials of the rockets, missile and spacecraft

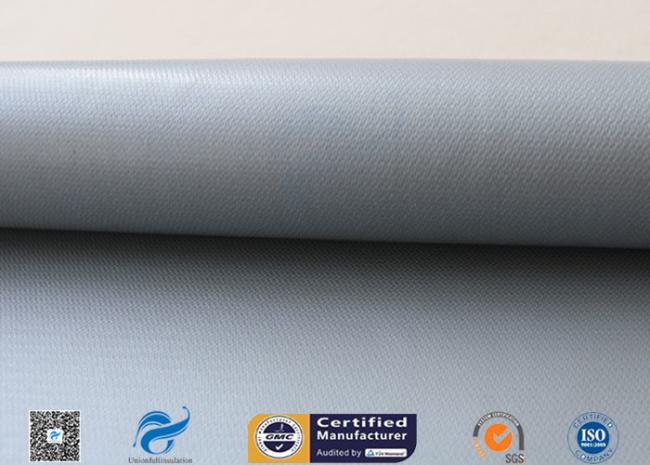

Pictures:



About Unionfull:

Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.

Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
