Plain Weave 260g Silicone Rubber Coated Fiberglass Fabric For Joint

Silicone coated fiberglass fabric which is produced by Uninofull present excellent performance in insulation filed: High dielectric strength,temperature

resistant,Anti-corrosion,fireproof,superior abrasion resistance,good heat insulation,good weather ability,etc.

Additional Specifications:

Data of UPSE-8628D40:

Surface treatment: Silicone coated

Basic fabric: Fiberglass fabric

Yarn Type:E-glass

Coating: 20g silicone rubber on both sides

Basic weight: 210g/m2 (6.2oz/yd2)

Total weight: 260g/m2 (7.6oz/yd2)

Thickness: 0.2mm (0.008inch)

Width: 1000mm (39inch)

Length: 50m/roll

Weave pattern: plain

Plain Weave:

The plain weave consist of yarns interlaced in an alternating fashion, one over and one under every other yarn. The plain weave provides good fabric stability.

Properties:

1.Low temperature to -70 °C and high temperature to 260℃

2.Insulation
Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.

3.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time.

4.Anti-ripper
It does not require reinforcement for natural tear resistance, has significant wind resistance and is subject to frequent mechanical properties.

Main Application:
 1.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
2.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.

3.Daily life

Tennis rackets, fishing rods, bows and arrows, swimming pools, bowling places, etc. in daily life are also used.

4.Application in filtration: gas filtration and liquid filtration

5.In the transportation industry, buses, yachts, tankers, cars, etc. are used.

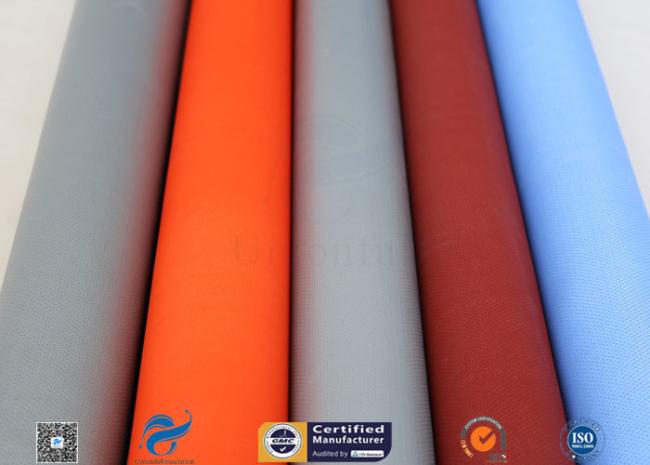

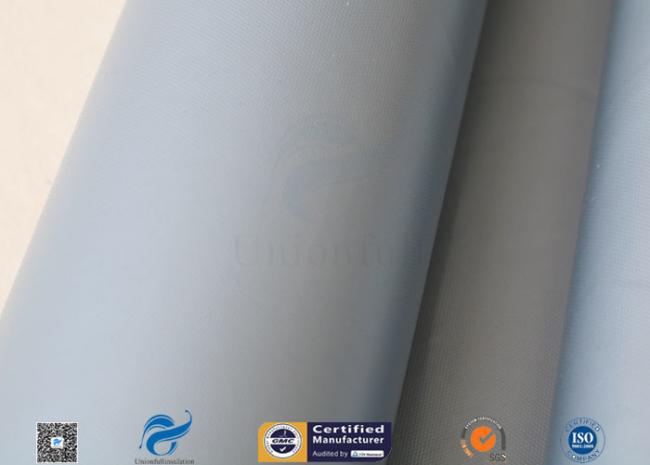

Pictures:


About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
