260℃ High-Temperaturer Resistant 0.85mm Silicone Coated Fiberglass Fabric

Description:

Silicone coated fiberglass fabric from Unionfull provides good resistance to extreme temperatures, being able to operate from -70°C to +260°C.

UPSE-8784D160 is a medium weight fiberglass fabric coated with a high quality, fire retardant silicone rubber, present good resistance in chemical, aging, heat insulation, weather etc.

As an ideal engineering material in construction, glass fiber cloth is mainly used to reinforce cement, roofing, wall materials, stone etc. Unionfull can produce any size according to customer's requirements like width,color,coating type and weight per square meter. Our product quality is guaranteed as approved by SGS, TUV, and we are the winner of the IMO rules.

Main specification of silicone coated fiberglass fabric:

Data sheet:

Ps: g/m2*0.0295=oz/yd2

Four methods to weave the fabric:
a).Plain weave: it can be used in electricity insulation materials and reinforced materials in industry, because of inseparable structure, plain and clear lines.
b).Twill weave: compared with plain weave, it is of high density, high intensity, with a soft and loose structural weave. It can be used in ordinary reinforced materials, filter materials, and painting cloth.
c) Satin weave: compared with plain weave and twill weave, it is of high density,high intensity, with a soft and loose structural weave with a good texture. It is applicable for use as a higher reinforced material in machinery.
d).Gauze weave: said lattice twist weave. It can be used in spread model curtain,resin reinforced emery wheel gray cloth and lattice embed belt.

Features:

1.excellent resistance to weather

2.Superior non-stick surface, easy to clean

3.good heat and cold resistance (-70 to 260)
4.good permeability and aging resistance.

5.Superior heat insulation

6.Durable, abrasion resistant

7.Low thermal conductivity

Main Application:
-Gasket and for packaging, food, printing, chemical and rubber industries

-Removable insulation jackets
-Reinforced construction material
-Fabric duct-work connector
-Welding blankets,Fire curtains

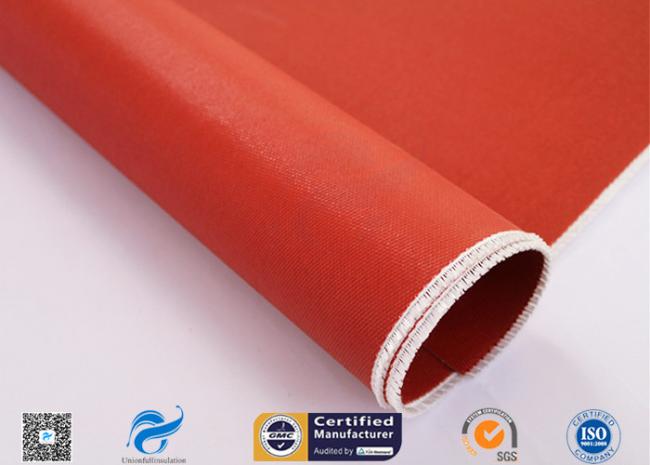

Pictures:

About Unionfull:

Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.

Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
