High Quality And Heat Resistant PTFE Coated Fiberglass Mesh Conveyor Belt
High Quality And Heat Resistant PTFE Coated Fiberglass Mesh Conveyor Belt
Product Introduction
Heat-resistant conveyor belt, mesh conveyor belt is made of high performance glass fiber immersed in PTFE. It is a new product with high performance and multiple functions of complex materials. PTFE coated glass fiber fabric with a variety of good properties, widely used in the aircraft industry, paper, food, environmental protection, printing and painting, clothing, chemistry, glass manufacturing, medical, electronics, insulation, construction (top frame base). ), knife sharpener slicing, machinery, etc.
Product Specification
| Name |
High Quality And Heat Resistant PTFE Coated Fiberglass Mesh Conveyor Belt |
| Type | PTFE mesh conveyor belt |
| Material | PTFE, PTFE coated fiberglass |
| Color | Brown |
| Mesh size | 4*4mm |
| Width | 0-4200mm |
| Length | Customized |
| Thickness | 0.97mm |
| Temperature resistance | -70~+260℃ |
Features
1. Good structural stability (elongation coefficient less than 5‰), high tensile strength and good mechanical performance.
2. Bending resistance, suitable for smaller impeller diameter.
3. Resistance to drugs and toxicity to almost all chemicals.
4. Fire resistance.
5. Ventilation performance: the air permeability of the conveyor belt reduces the waste of heat source and improves the drying efficiency.
Application
1. The dryer is suitable for non-woven fabrics, textile printing and dyeing, and screen printing machines.
2. Suitable for clothing fabric shrinking machine, high frequency dryer, UV dryer.
3. The conveyor belt is used for hot air drying, various food baking, and quick freezing machines.
4. Paper glazing and oiling machine, factory engineering.
5. Used in the production of cardboard.

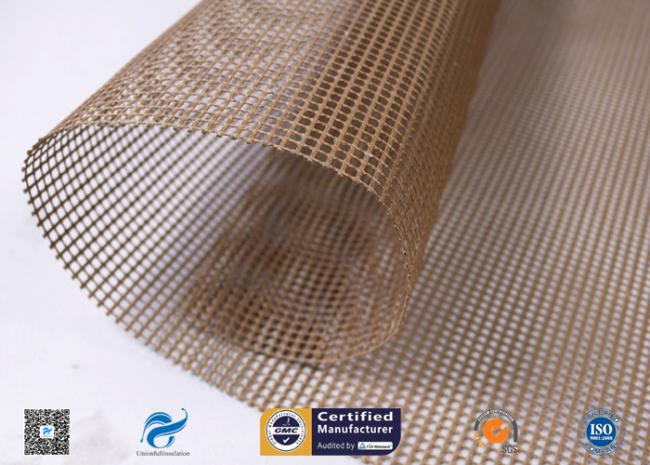

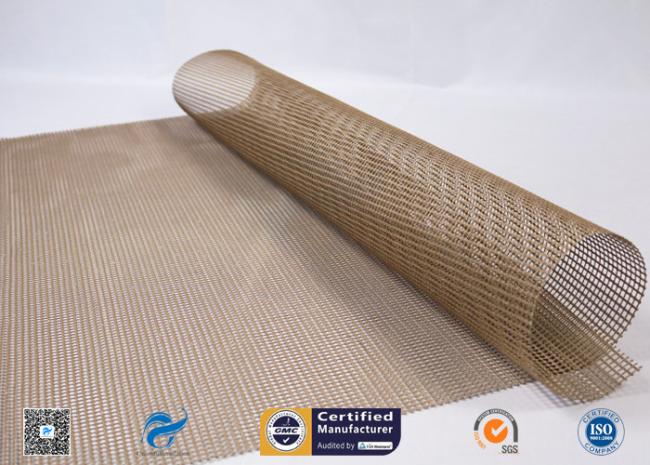

Pictures
