Professional Foam Fire Suppression System Gun with 20-64L/S Jet Flow Rate, 45-70M Maximum Range, and Stainless Steel Construction
Fire cannon
Product Introduction:

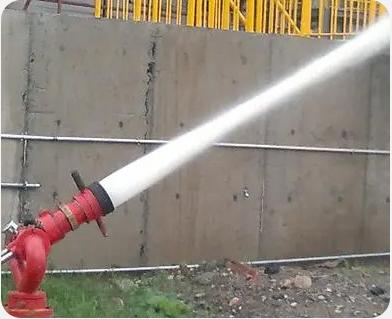

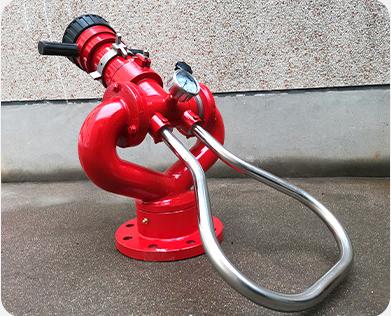

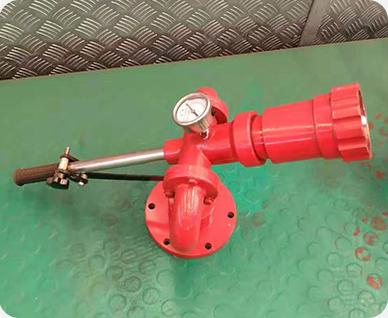

This product is a new type of multi-functional fire extinguishing equipment made of high-pressure resistant and high-strength materials. The stainless steel gun head is designed based on the principle of flow diversion, featuring a large flow rate, concentrated water flow, long range, and multiple functions. It can be used as a multi-functional foam gun. The flow rate can be adjusted within the range of 20-30L/S according to demand. It is flexible and convenient to operate. The gun body can rotate horizontally and vertically. It also has functions such as positioning and locking, which is conducive to the evacuation of operators from the site. It can be equipped on various fire engines, fire boats, fixed fire gun mounts, towers and fire pipelines.
Application:
1.Used for fire cooling,emergency rescue.
2.Adopted the fire vehicle,firefightingvessel,industrial enterprise,warehouse,oil field and storage tank of fire extinguishing equipment.
Product features:
![]() |

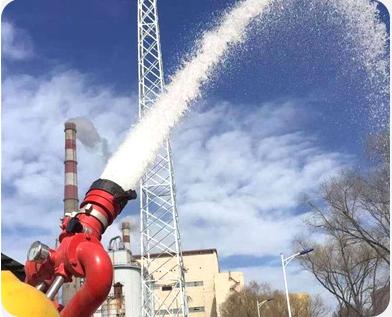

Long range and large flow rate Fixed fire water cannons usually have a long range, can cover a large area, and effectively deal with large-scale fires. Its flow rate is also relatively large, capable of quickly spraying a large amount of water or foam onto the fire source, thereby enhancing the efficiency of fire extinguishing. |
![]() |
The fire extinguishing area is large. Due to its advantages in range and flow rate, fixed fire water cannons can cover a large fire-fighting area and effectively control the spread of fire. |
![]() |
It rotates flexibly. The gun body of a fire water cannon is usually rotatable and can be positioned and locked. The operator can conveniently adjust the spray direction to ensure that the water flow or foam is accurately sprayed onto the fire source. |
![]() |
Light in weight Light in weight, small in size, fully functional and with excellent fire extinguishing effect. |
Technical parameters:
| Model | Flow(L/S) | Limit work pressure (Mpa) | Maximum working pressure (Mpa) | Maximum range (m) |
| PS10/50W-D | 30-50 | 1.0 | 1.6 | ≥70 |
|
Model Parameter |
PSKD8/20W-YL | PSKD8/30W-YL |
| Flow rate (L/S) | Q=20L/S | Q=30L/S |
| Jet radius (M) | 50m | 55m |
| interface size | DN65 | |
| Limit work pressure (Mpa) | 0.8 | |
| Maximum working pressure (Mpa) | 1.2 | |
| Horizontal rotation angle (°) | 0~360 | |
| Vertical rotation angle (°) | Prone angle -150 °, elevation angle+60 ° | |
| Spray method | Column and mist spray | |
| material | stainless steel | |
| Installation method | Seat installation/lifting | |
| Controller communication distance | 200m | |
| Wireless remote control communication distance | 150 | |
| Parameter model | PSKD8/20WG-YL | PSKD8/30WG-YL | PSKD8/40WG-YL | PSKDB/50WG-YL | PSKDB/60WG-YL |
| Flow rate (L/S) | Q=20L/S | Q=30L/S | Q=40L/S | O=50L/S | Q=60L/S |
| Jet radius (M) | 50m | 60m | 65m | 70m | 75m |
| interface size | DN80 | ||||
| Limit work pressure (Mpa) | 0.8 | ||||
| Maximum working pressure (Mpa) | 1.6 | ||||
| Horizontal rotation angle (°) | 0~360 | ||||
| Vertical rotation angle () | Prone angle -30 °, elevation angle+90 ° | ||||
| Spray method | Column and mist spray | ||||
| material | stainless steel | ||||
| Installation method | Seat installation/lifting | ||||
| Controller communication distance | 200m | ||||
| Wireless remote control communication distance | 150m | 150m | ||||
Q: Are you a trading company or a manufacturing factory?
A: We are both manufacturers and trading companies. We have our own factory, which has a history of nearly 15 years, and we have provided better services for overseas customers.
Welcome to inquire!
Q: Can you customize the paint color?
A: Sure, we have a variety of spray paint colors to choose from.
Q: How long is the quality guarantee period for your products?
A: We can offer a two-year quality guarantee.
Q: What is your minimum order quantity?
A: Usually, there is no minimum order quantity, but due to the high shipping cost per piece, we recommend ordering more than 20 pieces.
Q: Can you do OEM and build our own brand?
A: Yes, we can offer OEM and ODM services, and you can also build your own brand on the products.
