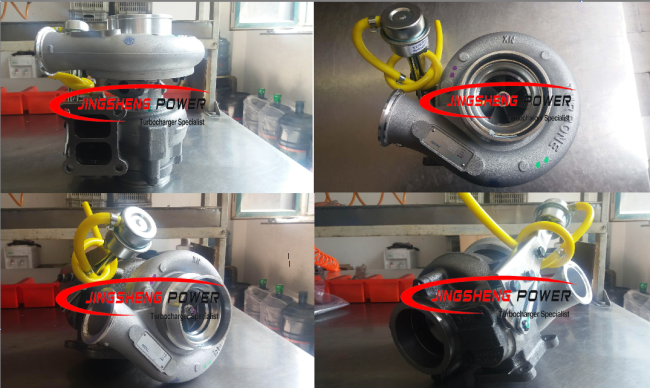

Cummins Industrial Truck HX40W Turbo 40384214038425 4090015, 6743818040, 4089189, 6743-81-8040

Price Negotiable
Price: negotiation
MOQ: 1 pc
Delivery Time: 5-7days
Brand: JINGSHENG
Product Description

Product Description


Part Number 4038421
Previous Version 4038425
OE number 4090015, 6743818040, 4089189, 6743-81-8040
Description KCEC Industrial Truck
CHRA 4027871 (3535324, 4027612, 4027849)
Turbo Model HX40W-A82N71GM/B76L84FJB19JD, HX40W
Engine 6C, 6CTAA, SA6D114E
Engine Manufacturer Cummins
Manufacturer Part Number 4035653
Displacement 8.3L, 8300 ccm
Fuel Diesel
Angle α (compressor housing) 178/360°
Angle β (turbine housing) 20/360°
Bearing Housing 3532632 (4027872, 4027869)
Turbine Wheel 3522879 (3535359)(Ind. 76. mm, Exd. 64. mm, 12 Blades)(1152301436)
Comp. Wheel 3599592 (3599591)(3537168)(6743818050)(Ind. 58. mm, Exd. 81.3 mm, 8+8 Blades)
Back plate 3530923 (1154351300)
Heat shield Number 3519302 (194149) (1152301340)
Repair Kit 3575169 (1153035750)
Turbine Housing 3598051 (4030686)
Comp. Housing 4039128
Actuator 3593678
Gasket (turbine inlet) 409039-0000 (2405022)
Gasket (turbine Outlet) 3535243
Gasket (oil outlet) 210060 (2475013)(409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)
Gasket Kit 4032424



Applications

2004- Cummins Industrial Truck IR / KCEC-KCEC with 6C Engine





Why choose us :
1> We are professional turbo and turbo parts factory. The good quality and the competitive price is the advantage of our company.
2> The material we choose is always equal to the OEM standard and products meet to OEM quality system processes
3> A trial order or sample orders are welcomed.
4> More than 800 kinds of turbo products are exported to Europe, America, Japan, and other countries and regions in the world.
5> We will do our best to service you all the time if you have the further question

Shipping:
Depending on various circumstances, three different delivery methods have been taken: by sea, by air cargo and by express service.
*By sea. This is the most economical way of delivery. Suit for big quantity order, the delivery cost dramatically low and assist you in achieving maximum profit. It normally would take about one month for cargoes to reach their destination port.
*By air cargo. The advantage of air cargo is it costs much less time than delivery by sea. Generally it would take about one to two weeks for cargo reaching its destination.
*By express service. It is the most expensive way of delivery, but it is really quick and convenient. Normally this door to door service can deliver the goods to your company only in 3-5days. Fortunately, we have signed big discount contract with most express companies, such as TNT, DHL and UPS, to help our customers cut their delivery expenditure.
----------------------------------------------------
Packing:



  1. We can design the packing by your requirements but with bigger quantity.
  2. If need wooden pallets, the customer needs to pay for the wooden pallet charges
  3. If no requirements, we offer the Corrugated Carton and vellum paper
  4. The price we offer is the factory price.
  5. We can help you to delivery the goods while you have requirement.
  6. And the shipment fee shall be in your account.
  7. We can only release the goods after the payment of the products was made

----------------------------------------------------
Warranty:
Once buying our products you could enjoy 6 months warranty period. Within this period you could claim quality warranty anytime when you find quality problem of our products.
Please contact our After-sales service department in time within 30days after you received the cargo.
we have complete after-sale services operated by the service department. We can provide you with replacement as well as spare parts. Our technical capability and fast response can make you save money and cost.
