EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 250W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design
Price:
1-100 USD/unit
MOQ:
1pcs
Delivery Time:
10-18 working days
Brand:
SURPLUS LIGHTING
Product Description
Class II EAGLE GEN4 TUV ENEC ENEC PLUS+ CB CE RoHS Certified 250W DALI-2 LED Street Light 195lm/W With 7 PIN NEMA Socket Shorting Cap and 10KV SPD Tool-free opening and Self-cleaning Design

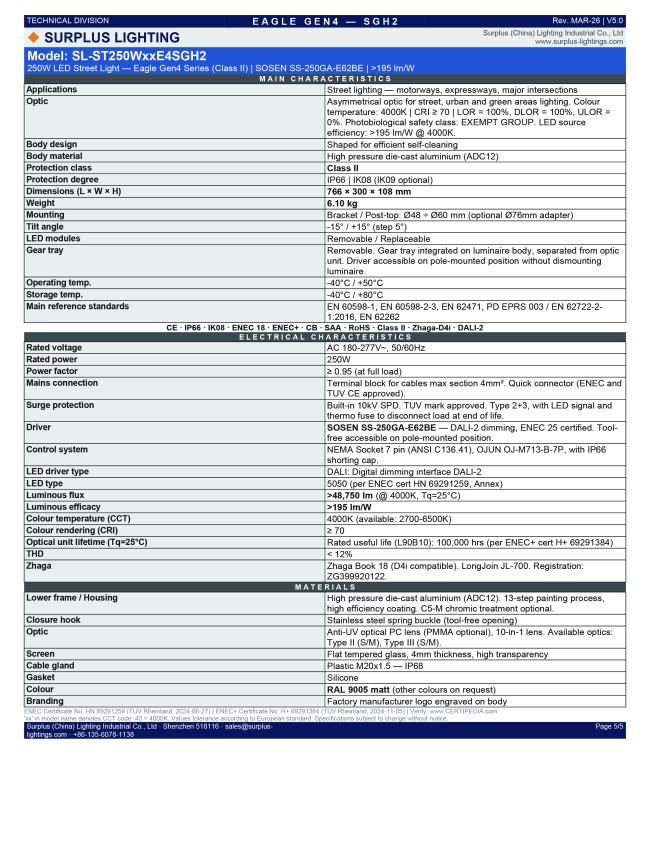

Class II Eagle Gen4 195lm/W LED Street Light Datasheet
Products Features of Class II ENEC ENEC+ CB CE RoHS SAA Certified Smart City Lighting Eagle Gen4 LED street light IP66 IK08 Rated
| TECHNICAL DIVISION | E A G L E G E N 4 — S G H 2 | Rev. MAR-26 | V5.0 | |||
| ◆ SURPLUS LIGHTING | Surplus (China) Lighting Industrial Co., Ltd www.surplus-lightings.com |
||||
| Model: SL-ST250WxxE4SGH2 250W LED Street Light — Eagle Gen4 Series (Class II) | SOSEN SS-250GA-E62BE | >195 lm/W |
|||||
| M A I N C H A R A C T E R I S T I C S | |||||
| Applications | Street lighting — motorways, expressways, major intersections | ||||
| Optic | Asymmetrical optic for street, urban and green areas lighting. Colour temperature: 4000K | CRI ≥ 70 | LOR = 100%, DLOR = 100%, ULOR = 0%. Photobiological safety class: EXEMPT GROUP. LED source efficiency: >195 lm/W @ 4000K. | ||||
| Body design | Shaped for efficient self-cleaning | ||||
| Body material | High pressure die-cast aluminium (ADC12) | ||||
| Protection class | Class II | ||||
| Protection degree | IP66 | IK08 (IK09 optional) | ||||
| Dimensions (L × W × H) | 766 × 300 × 108 mm | ||||
| Weight | 6.10 kg | ||||
| Mounting | Bracket / Post-top: Ø48 ÷ Ø60 mm (optional Ø76mm adapter) | ||||
| Tilt angle | -15° / +15° (step 5°) | ||||
| LED modules | Removable / Replaceable | ||||
| Gear tray | Removable. Gear tray integrated on luminaire body, separated from optic unit. Driver accessible on pole-mounted position without dismounting luminaire. | ||||
| Operating temp. | -40°C / +50°C | ||||
| Storage temp. | -40°C / +80°C | ||||
| Main reference standards | EN 60598-1, EN 60598-2-3, EN 62471, PD EPRS 003 / EN 62722-2-1:2016, EN 62262 | ||||
CE · IP66 · IK08 · ENEC 18 · ENEC+ · CB · SAA · RoHS · Class II · Zhaga-D4i · DALI-2
| E L E C T R I C A L C H A R A C T E R I S T I C S | ||
| Rated voltage | AC 180-277V~, 50/60Hz | |
| Rated power | 250W | |
| Power factor | ≥ 0.95 (at full load) | |
| Mains connection | Terminal block for cables max section 4mm². Quick connector (ENEC and TUV CE approved). | |
| Surge protection | Built-in 10kV SPD. TUV mark approved. Type 2+3, with LED signal and thermo fuse to disconnect load at end of life. | |
| Driver | SOSEN SS-250GA-E62BE — DALI-2 dimming, ENEC 25 certified. Tool-free accessible on pole-mounted position. | |
| Control system | NEMA Socket 7 pin (ANSI C136.41), OJUN OJ-M713-B-7P, with IP66 shorting cap. | |
| LED driver type | DALI: Digital dimming interface DALI-2 | |
| LED type | 5050 (per ENEC cert HN 69291259, Annex) | |
| Luminous flux | >48,750 lm (@ 4000K, Tq=25°C) | |
| Luminous efficacy | >195 lm/W | |
| Colour temperature (CCT) | 4000K (available: 2700-6500K) | |
| Colour rendering (CRI) | ≥ 70 | |
| Optical unit lifetime (Tq=25°C) | Rated useful life (L90B10): 100,000 hrs (per ENEC+ cert H+ 69291384) | |
| THD | < 12% | |
| Zhaga | Zhaga Book 18 (D4i compatible). LongJoin JL-700. Registration: ZG399920122. | |
| M A T E R I A L S | ||
| Lower frame / Housing | High pressure die-cast aluminium (ADC12). 13-step painting process, high efficiency coating. C5-M chromic treatment optional. | |
| Closure hook | Stainless steel spring buckle (tool-free opening) | |
| Optic | Anti-UV optical PC lens (PMMA optional), 10-in-1 lens. Available optics: Type II (S/M), Type III (S/M). | |
| Screen | Flat tempered glass, 4mm thickness, high transparency | |
| Cable gland | Plastic M20x1.5 — IP68 | |
| Gasket | Silicone | |
| Colour | RAL 9005 matt (other colours on request) | |
| Branding | Factory manufacturer logo engraved on body | |
ENEC Certificate No. HN 69291259 (TUV Rheinland, 2024-06-27) | ENEC+ Certificate No. H+ 69291384 (TUV Rheinland, 2024-11-05) |
Verify: www.CERTIPEDIA.com
'xx' in model name denotes CCT code: 40 = 4000K. Values tolerance according to European standard. Specifications subject to change
without notice.
