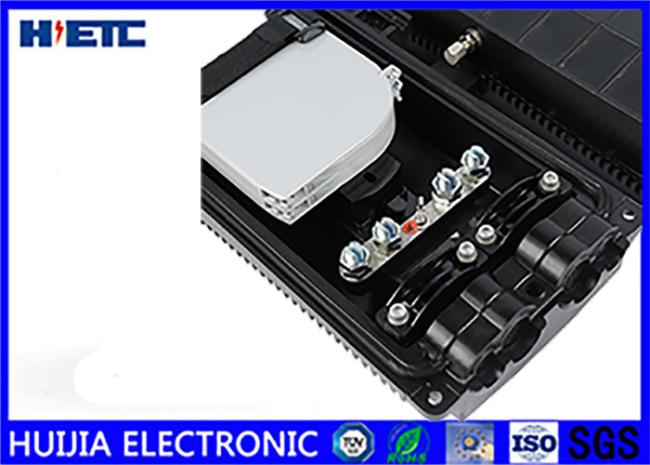

High Performance Fiber Optic Joint Enclosure IP68 For Local Area Networks
Description
fiber optic in-line closure provide suitable for cable whose diameter is 10-23mm, they could be used in aerial, duct, and direct buried
application. These products are made of the high quality material and with the mechanical sealing structure filled with the sealing material. The
external components and fastening parts are made of stainless steel. They could be opened and reused without changing sealing material.
Application:
- Telecommunication networks
- CATV networks
- Local area networks
- Aerial –hanger, Wall-mounting, Directly buried
- Widely used in FTTH access network
Details
| Type | GJS10-A | GJS10-B | GJS10-E |
| Dimension (mm) | 388*165*62mm | 280*180*82mm | 410*200*110mm |
| Capacity of splice tray | 24 (Single Fiber) |
24 (Single Fiber) | 24 (Single Fiber) |
| Single core maximum capacity(bunchy fiber) |
24 core | 24 core | 48 core |
| Sealing Structure | Heat shrinkable sealing structure (silicon gum material) |
Screw thread mechanical seal (silicon gum material) |
Heat shrinkable sealing structure (silicon gum material) |
Certificate
· The third party test report from CTTL (china telecommunication technology labs )
· Material safety ROHS report.
Engineering experience
· China Unicom
· China Mobile
· China Telecom
