High Contrast Ratio 3.5 Inch Sharp LCD Panel LQ035Q7DB02 53.64 × 71.52 mm
High Contrast Ratio 3.5 Inch Sharp LCD Panel LQ035Q7DB02 53.64 × 71.52 mm
Descriptions for LQ035Q7DB02 LCD:
<<
| Panel NO. : | LQ035Q7DB02 |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 50g (Typ.) |
| Surface : | Hard coating (3H) |
Technical parameters for LQ035Q7DB02 LCD:
<
| Panel NO. : |
|
|
| Brightness : | 50 cd/m² (Typ.) | |
| Contrast Ratio : | 70 : 1 (Typ.) (Transmissive) | |
| Contrast Ratio : | 8:1 (Typ.) (Reflective) | |
| Display Color : | 262K (6-bit) | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
| Viewing Angle : | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : | Wx:0.320; Wy:0.340 | |
| Reflectance Ratio : | 7/11% (Min./Typ.) | |
| Sunlight Readable : | Sunlight Readable |
Our Product Advantages:
Our product line comprises the full range of LCD TFT Displays for industrial and professional applications. Display Solution is your flat panel partner for indoor and outdoor lcd panel applications also in bright sunlight or harsh environments. Premium quality or economic competitive low-cost LCD panels respectively in best price-performance ratio.
Industrial standard- and semi-custom panels also available as complete display-kit solution including Display Solutions developed high quality and long-term available TFT LCD panel or Touch Screen.
We are professional Industrial Panel Distributor of the following manufacturers: AUO, LG, Innolux, Sharp, NEC, BOE and More.

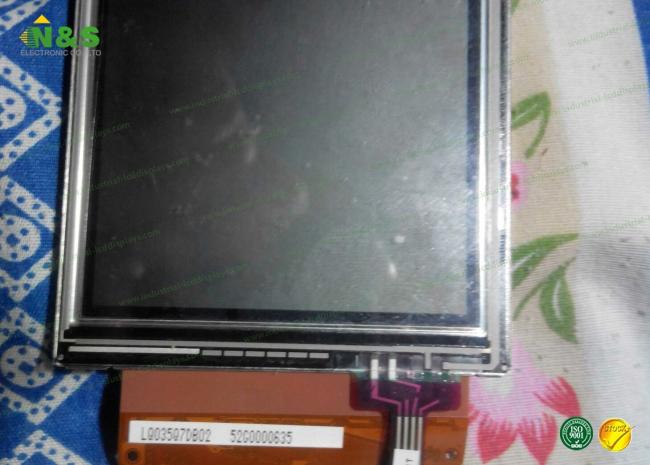

Pictures about the LQ035Q7DB02:
