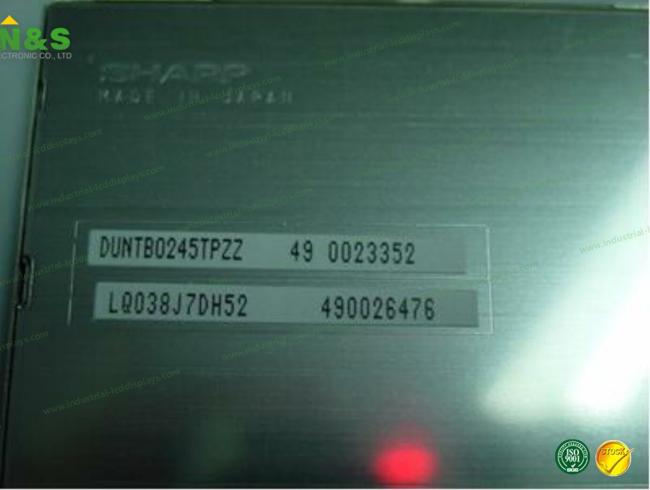

Low Power Consumption 3.8 Inch Sharp LCD Panel LQ038J7DH52 For Medical Application
Low Power Consumption 3.8 Inch Sharp LCD Panel LQ038J7DH52 For Medical Application
Product Descriptions:
<
| Contrast Ratio : | 60:1 (Typ.)(Transmissive) 2:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 20/35 (Typ.)(Tr/Td) |
| Viewing Angle : | 55/55/55/55 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 39 pins |
| Input Voltage : | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
Features For LQ038J7DH52 TFT LCD Module:
<
| Display Mode : | TN, Normally White, Transflective |
| Brightness : | 80 cd/m² (Typ.) |
| Contrast Ratio : | 60 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 2:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 20/35 (Typ.)(Tr/Td) |
| Viewing Angle : | 55/55/55/55 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 1 o'clock |
| Reflectance Ratio : | 2.8/4% (Min./Typ.) |
| Sunlight Readable : | Sunlight Readable |
INTRODUCTION:
The A LQ038J7DH52 TFT LCD Module screen monitor is a fully-integrated, off-the-shelf unit (COTS) that combines high-performance Projected Capacitive Touch Technology (PCT or PCAP); in an industrial-grade LCD flat panel, with open Frame chassis mount industrial design. The PCAP industrial multi-touch displays with HMI interface provide full range of industrial-grade units with multi-function capabilities and brilliant displays.
We also provide full list for the Tianma LCD model series. We are distributor for Commercial & Industrial LCD Panel not only for the Tianma LCD, but also the LCD panels for Samsung, LG, Sharp, Innolux, AUO, BOE and more.
| Signal Category : | TTL | |||||
|---|---|---|---|---|---|---|
| Signal Class : | Parallel RGB (1 ch, 6-bit) | |||||
| Input Voltage for Panel : | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) | |||||
| Input Current for Panel : | 5.5/2.9/0.1/-0.1mA (Typ.)(ISHA/ISHD/IDD/IEE) | |||||
| Interface Type : | FPC | |||||
Tag: LCD Display Panel, LCD Screen Replacements
