Hard Coating Sharp LCD Display Panels , 3.7 Inch Color TFT LCD Display 480 × 640 LS037V7DW03

Hard Coating Sharp LCD Display Panels , 3.7 Inch Color TFT LCD Display 480 × 640 LS037V7DW03

Descriptions for SHARP LS037V7DD06S:
<



Competitive Advantage:

1    We are a leading manufacturer of LCD products for more than 10 years.
2    We got the ISO9001 quality management system certification.
3    We have our own R&D team, and accept OEM order as per customer’s design.
4    We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.
5    Our main material LCD panels all are directly imported from Samsung and LG in Korea.
6    All products win the certificate of CE,CCC,FCC and RoHS.
7    Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.
8    3-years warranty is offered.
.
We will test them strictly before shipping.We will ship it in 1-3 working days after your paying.
We only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be
different for different countries.

Technical parameters for SHARP LS037V7DD06S:


1. Panel Model : LS037V7DW03 2 Compatible model
2. Panel Size : 3.7 inch
3. Resolution : 480(RGB)×640 , VGA
4. Display Mode : ASV, Normally Black, Transflective
5. Active Area : 56.16×74.88 mm
6. Outline : 65×89.2 mm
7. Surface :
8. Brightness : 200 cd/m² (Typ.)
9. Contrast Ratio : 200:1 (Typ.)(Transmissive) 2:1 (Typ.)(Reflective)
10. Display Colors : 262K (6-bit) , CIE1931 35%
11. Response Time : 15/20 (Typ.)(Tr/Td)
12. Viewing Angle : 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D)
13. Lamp Type : 7S1P WLED Without Driver
14. Signal Interface : Parallel RGB (1 ch, 6-bit) , 51 pins

SHARP LS037V7DD06S Optical Features

Sunlight Readable : Sunlight Readable

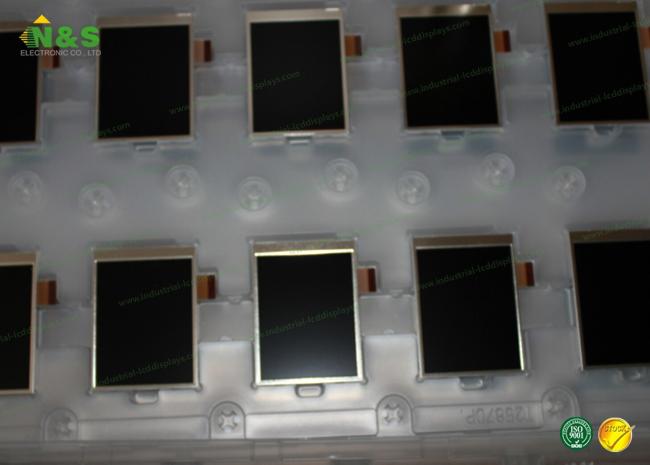

Photos about SHARP LS037V7DD06S :
