Low Power Consumption NEC LCD Panel 240 × 320 Resolution With Dot Matrix Lcd Display
3.5 Inch NL2432HC22-22B with dot matrix lcd display NEC lcd panel
General Specification :
1. Panel Model : NL2432HC22-22B
2. Resolution : 240(RGB)×320 , QVGA
3. Display Mode : TN, Normally White, Transflective
4. Active Area : 53.64×71.52 mm
5. Contrast Ratio : 90:1 (Typ.)(Transmissive) 6:1 (Typ.)(Reflective)
6. Display Colors : 262K (6-bit) , CIE1931 40%
7. Response Time : 14/25 (Typ.)(Tr/Td)
8. Lamp Type : 6S1P WLED Without Driver
9. Signal Interface : CMOS (1 ch, 6-bit) , 50 pins
10. Input Voltage : 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF)
Technical Specifications for NEC NL2432HC22-22B LCD Panel:
<
| Display Mode : | TN, Normally White, Transflective |
| Brightness : | 90 cd/m² (Typ.) |
| Contrast Ratio : | 90 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 6:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 14/25 (Typ.)(Tr/Td) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.320; Wy:0.330 |
| White Variation : | 1.43/1.67 (Typ./Max.)(9 points) |
| Reflectance Ratio : | 8% (Typ.) |
| Sunlight Readable : | Sunlight Readable |
Our Advantages for LCD panel:
| 1 | FOG automatical device can ensure the capacity of 1000,000 per month. |
| 2 | MOQ can be 100pcs, lead time of standard products is 20 days. |
| 3 | Reliability test and full examination to ensure the high quality of the display. |
| 4 | OEM&ODM are provided for TFT/TN LCD/Plastic Moulding. |
| 5 | Strictly ISO quality management system. |
| 6 | Mature and Professional R&D and after service. |
| 7 | Various cooperation experience with big brands |
As one of the leading LCD distributor in China, we are strong at EOL panels and hard to find shortage panels of world famous Brand such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA HITACHI/KOE Etc.We work closely with more than 540 enterprises in the world, including large OEM factories,franchised distributors and well-known independent distributors in LCD industry.

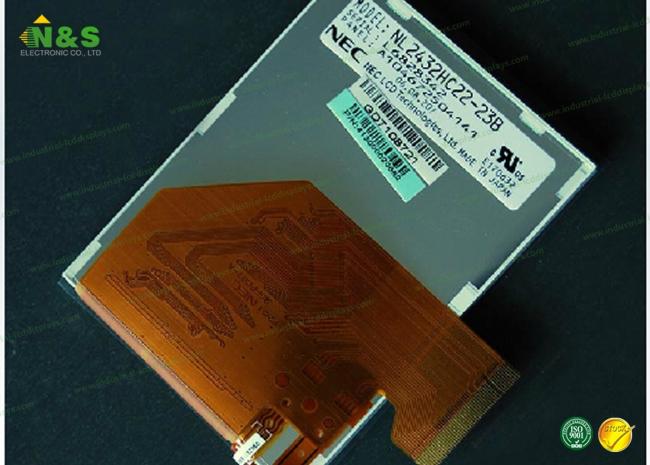

Some pictures about Panel Model NL2432HC22-22B:
