Transflective 3.5 Inch NEC LCD Panel NL2432HC22-40A 6S1P WLED Without Driver
NEC lcd panel 3.5 Inch 53.64×71.52 NL2432HC22-40A with TN, Transflective
Products Details:
<
Panel Brand : NEC
Panel Model : NL2432HC22-40A
Active Area : 53.64×71.52 mm
Outline : 63.5×85×3.2 mm
Surface : Clear, Hard coating (3H)
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 150:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective)
Display Colors : 262K (6-bit) , CIE1931 40%
Viewing Angle : 35/35/35/35 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 6S1P WLED Without Driver
Signal Interface : CMOS (1 ch, 6-bit) + SPI , 45 pins
Input Voltage : 3.0V (Typ.)
Our company advantage in the TFT LCD Display Panel area:
<
| Panel Model : | NL2432HC22-40A |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 15:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle : | 35/35/35/35 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.300; Wy:0.320 |
| White Variation : | 1.43/1.67 (Typ./Max.)(9 points) |
| Reflectance Ratio : | 10/15% (Min./Typ.) |
| Sunlight Readable : | Sunlight Readable |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Power Consumption : | 434mW (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5 .Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
As one of the leading LCD distributor in China, we are strong at EOL panels and hard to find shortage panels of world famous Brand such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA HITACHI/KOE Etc.
We work closely with more than 540 enterprises in the world, including large OEM factories,
franchised distributors and well-known independent distributors in LCD industry.
<

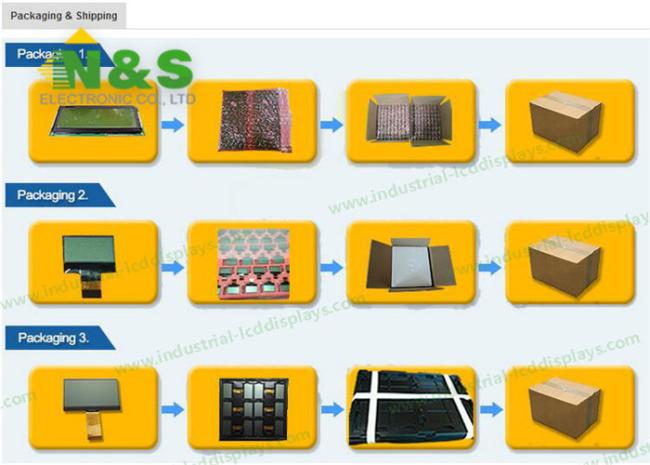

Packaging & Delivery
| Packing details | 1x 12.1 inch Industrial LCD display; Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 2-3 working days for shipping products after receiving payments; |
Pictures for NEC NL2432HC22-40A LCD Panel:
