NLT LVD 12.1 Inch Industrial LCD Displays Normally White NL8060BC31-41D
NLT LVD Panel , 12.1 Inch NL8060BC31-41D with Screen a-Si CCFL Panel
Main features:
1. Display Mode : TN, Normally White, Transmissive
2. Outline : 280×210×11.5 mm
3. Surface : Antiglare, Hard coating (3H)
4. Brightness : 400 cd/m² (Typ.)
5. Contrast Ratio : 600:1 (Typ.)
6. Display Colors : 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40%
7. Response Time : 6/19 (Typ.)(Tr/Td)
8. Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
9. Frequency : 60Hz
10. Lamp Type : 2 pcs CCFL Without Driver
Detailed Product Description:
| Plan Mode : | NL8060BC31-41D |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
Technical Specifications for NLT NL8060BC31-41D LCD Panel:
<
| Lamp Position : | Edge light type (Top side) |
| Lamp Type : | CCFL |
| Lamp Amount : | 2 pcs |
| Lamp Shape : | Straight |
| Lamp Replaceable : | Replaceable |
| Lamp RFU Model : | 121LHS22 |
| Lamp Voltage : | 560V (Typ.) |
| Lamp Current : | 2.0/5.0/5.5mA (Min./Typ./Max.) |
| Lamp Operating Frequency : | 58/63/68KHz (Min./Typ./Max.) |
| Lamp Startup Voltage : | 1380/1560V (Min.)(Ta=+25/-20℃) |
| Interface Type : | Connector |
The above parameters are inputted by electronic engineers according to the datasheet, every effort has been made to reduce errors, but we can not guarantee that the parameter is entirely correct.
Our company advantage in the TFT LCD Display Panel area:
As one of the leading LCD distributor in China, we are strong at EOL panels and hard to find shortage panels of world famous Brand such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA HITACHI/KOE Etc.We work closely with more than 540 enterprises in the world, including large OEM factories,franchised distributors and well-known independent distributors in LCD industry.

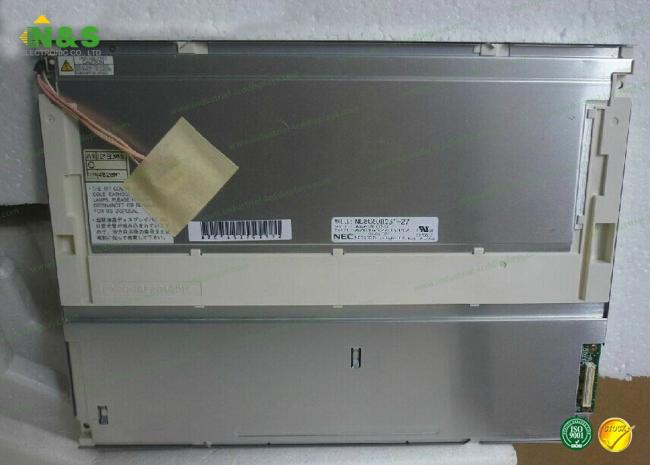

Photos about NL8060BC31-41D:
