Normally White 8.0 Inch Chimei Lcd Flat Panel , Numeric Lcd Display Anti - Glossy Surface Q08009-602
Normally White 8.0 Inch Chimei Lcd Flat Panel , Numeric Lcd Display Anti - Glossy Surface Q08009-602
Our Company For TFT LCD Display:
N$S supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compaired with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc.
Product General Features:
<
| Panel Model : | Q08009-602 |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 125 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0675×0.2025 mm (H×V) |
| Pixel Pitch : | 0.2025×0.2025 mm (H×V) |
| Weight : | 65g |
| Surface : | Antiglare |
| Active Area : | 162×121.5 mm (H×V) |
| Outline Dimension : | 170.9×132.4 mm (H×V) |
| Outline Depth : | 1.43 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 0 cd/m² |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.) |
The Q08009-602 LCD monitor offers exceptional image quality and long-term dependable performance. These are ideal for mobile, in-vehicle video systems for law enforcement and public transportation. They are also ideal for use in manufacturing, commercial and other applications requiring a great image in a compact 8.0” enclosure.
Notice:
I. Display & Panel: imported from Japan & Korea and so on. Level A LCD Panel. stable quality & better performance.
II. Main Board & Controller: the imported chip, strong technology support, special design, guarantee the quality & performance are beyond those from many competitors in this industry.
Applications:
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems

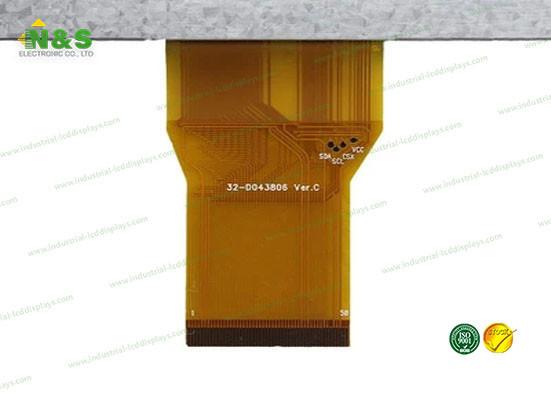

Details Picture for the Q08009-602 LCD Screen Display Panel:
Tag: Industrial LCD Display, 8.0 inch LCD Panel
