Industrial / Commercial 9.7 Inch LG LCD Panel LP097QX2-SPAV For PDA Application
Industrial / Commercial 9.7 Inch LG LCD Panel LP097QX2-SPAV For PDA Application
Product Description :
Industrial TFT LCD with High Bright LED Backlighting
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
<
| Panel Size : | 9.7 inch |
| Dot Resolution : | 1536(RGB)×2048 (QXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 264 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.032×0.096 mm (H×V) |
| Pixel Pitch : | 0.096×0.096 mm (H×V) |
| Weight : | 112g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H), Antireflection |
| Active Area : | 147.45×196.58 mm (H×V) |
| Bezel Area : | 151.49×200.62 mm (H×V) |
| Outline Dimension : | 160.3×208.93 mm (H×V) |
| Outline Depth : | 2.08 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on up, down slugs |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Amount per Box : | 30 pcs |
| Box Size : | 478×365×288 mm (L×W×H) |
Related Products:
Industrial TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4", , etc.
Safety:
Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your skin or clothes, wash it off immediately by using soap and water.
1. Store the module in a dark room where must keep at 25±10ºC and 65%RH or less.
2. Do not store the module in surroundings containing organic solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.
Optical Features :
Autoelectronics,3D&Shutter,Meters&Instrument,Telecommunication,Domestic electrical appliance (Household appliance), Fuel dispensers, Office equipment, Medical &health equipment, Business related facility, Education electronics.
<
| Brightness : | 440 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.3056; Wy:0.3193 |
| White Variation : | 1.40/1.60 (Typ./Max.)(13 points) |

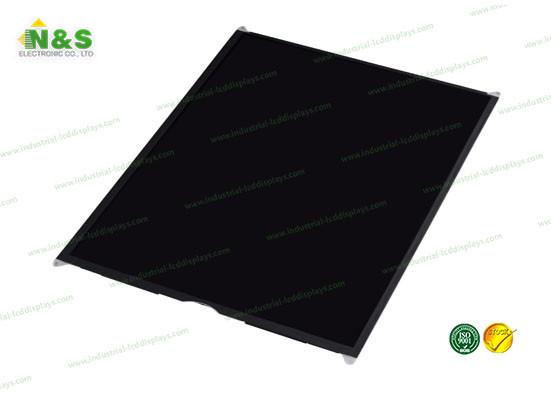

Details Pictures for the LP097QX2-SPAV Screen Display Panel:
