Antireflection 9.7 TFT Display Modules LP097X02-SLEA , 160g LCD LG Monitor For Automobile
9.7 inch LP097X02-SLEA 600:1 Antiglare TFT display modules , LG LCD Panel
Specification of 9.7" tft lcd :
Panel Size : 9.7 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 132 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.064×0.192 mm (H×V)
Pixel Pitch : 0.192×0.192 mm (H×V)
Weight : 160g (Max.)
Surface : Glare (Haze 0%), Hard coating (3H), Antireflection
Active Area : 196.608×147.456 mm (H×V)
Bezel Area : 201.40×152.26 mm (H×V)
Outline Dimension : 210.35×166.25 mm (H×V)
Outline Depth : 3.4/5.95 (Max.) mm
Holes & Brackets : Face mounting holes (8 pcs) on left, right, up slugs
Landscape or Portrait : Landscape type
Touch Panel : Without
Related Products:
Industrial TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4", , etc.
Our Advantages for LCD panel:
| 1 | FOG automatical device can ensure the capacity of 1000,000 per month. |
| 2 | MOQ can be 100pcs, lead time of standard products is 20 days. |
| 3 | Reliability test and full examination to ensure the high quality of the display. |
| 4 | OEM&ODM are provided for TFT/TN LCD/Plastic Moulding. |
| 5 | Strictly ISO quality management system. |
| 6 | Mature and Professional R&D and after service. |
| 7 | Various cooperation experience with big brands |
N&S supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compaired with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc.
Optical Features :
| Display Mode : | S-IPS, Normally Black, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.45/1.75 (Typ./Max.)(13 points) |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 6S6P |
| Lamp Shape : | 6 strings |
| Lamp Life Time : | 10K(Min.) (Hours) |
| Lamp Current : | 5/20/25mA (Min./Typ./Max.) |
| Lamps Power Consumption : | 2.3/2.8W (Typ./Max.) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | No |

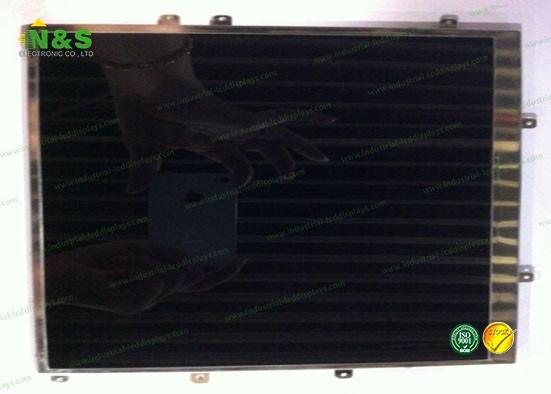

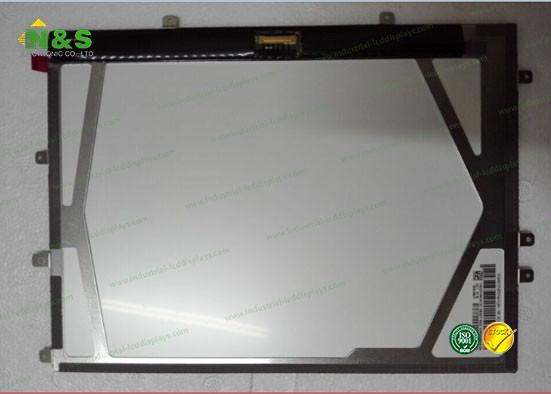

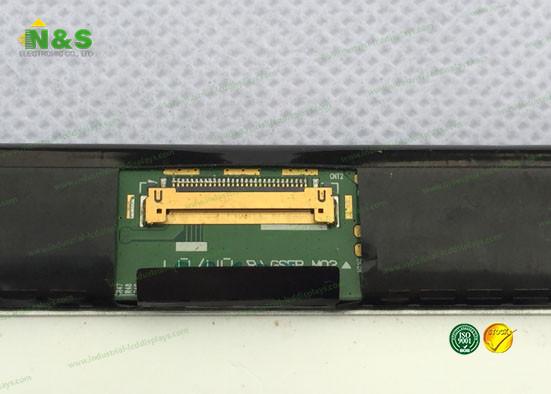

Details Pictures for the LP097X02-SLEA Screen Display Panel:
