Normally White 10.1 LG LCD Panel Replacement WLED Embedded LP101WSA-TLA1
10.1 inch LP101WSA-TLA1 200 cd/m² TFT display modules , LG LCD Panel
Specification :
<
| Panel Brand : | LG.Philips LCD |
| Panel Model : | LP101WSA-TLA1 13 Compatible model |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.1 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 222.72×125.28 mm |
| Outline : | 235×143×5.2 mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface : | Glare (Haze 0%) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Min.) |
| Display Colors : | 262K (6-bit) , CIE1931 45% |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 30/30/10/20 (Min.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Advantages for LCD panel:
N&S supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compaired with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc.
Optical Features :
1. Panel Size : 10.1 inch
2. Dot Resolution : 1024(RGB)×600 (WSVGA)
3. Pixel Configuration : RGB Vertical Stripe
4. Pixel Density : 117 PPI
5. Aspect Ratio : 16:9 (H:V)
6. Form Factor : Flat Rectangle Display
7. Dot Pitch : 0.0725×0.2088 mm (H×V)
8. Pixel Pitch : 0.2175×0.2088 mm (H×V)
9. Weight : 190g (Max.)
10. Surface : Glare (Haze 0%)
11. Holes & Brackets : Side mounting holes (4-M2) on left, right bezel
12. Touch Panel : Without

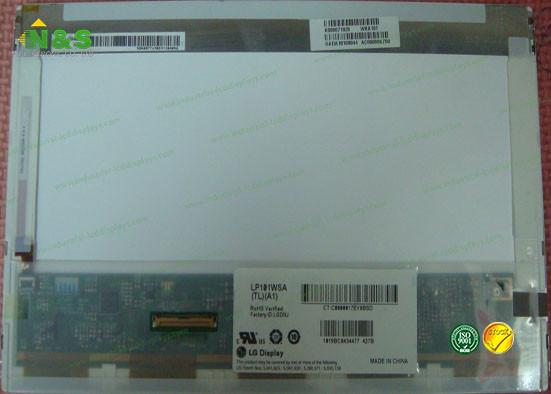

Details Pictures for the LP101WSA-TLA1 Screen Display Panel:
