Our company’s advantages for TFT LCD Screen Display Area:
N&S Technology Limited founded in May of 2010, is a professional panel display supplier and solution maker in China. We provides a wide range of value adding products as well as a professional engineering team providing customization and support services.
N&S Technology Limited is an experienced solution provider for mid & small sized (3.5---15) LCD module(PVI/AUO/CMI/INNLOUX/IVO) ,Our products include A/D & D/D TFT-LCD controller board, Industrial TFT- LCD, CCFL/LED Backlight inverter, industrial monitor, open frame etc.
Several years were promoted in the TFT-LCD market, we build good relationships with supplier of AUO,CMO,IVO and INNLOUX ,so that we can get good price and delivery date.
Basic Information:
<
| Panel Brand : | CMO |
| Panel Model : | G080Y1-T01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 8.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 117 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.07225×0.21675 mm (H×V) |
| Pixel Pitch : | 0.21675×0.21675 mm (H×V) |
| Weight : | 172g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 173.4×104.04 mm (H×V) |
| Bezel Area : | 175.2×105.84 mm (H×V) |
| Outline Dimension : | 190×120 mm (H×V) |
| Outline Depth : | 5.06±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Power Consumption : | 3.97W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
we offer high quality, fast delivery, competitive price for our customers;
> Please send your RFQ(request for quoting) to get latest price;
> We will ship the items within 2 working days after receive the payment;
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways;
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices ;
CMO G080Y1-T01 Backlight System :
Lamp Position : Edge light type (Bottom side)
Lamp Amount : 9S3P
Lamp Life Time : 30K(Min.) (Hours)
Lamp Voltage : 28.8/31.5V (Typ./Max.)
Lamp Current : 120/130mA (Typ./Max.)
Lamps Power Consumption : 3.45W (Typ.)
Interface Type : Connector
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
YEONHO 35001HS-02L 3.5 mm 2 pins 1 pcs BLE-2PINS-AC
Lamp Driver Board : No

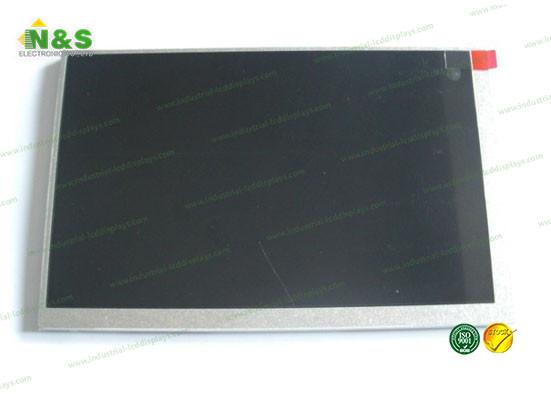

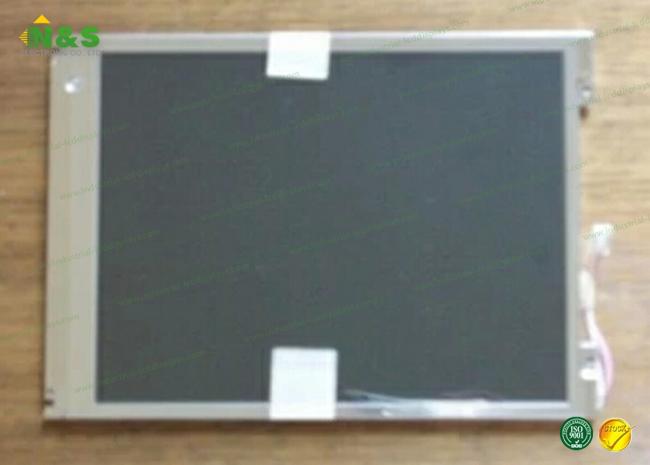

Picture for CMO G080Y1-T01:
