Hard Coating Clear 3.5 Inch LG LCD Panel With Full View Angle LB035Q02-TD01
3.5 Inch LB035Q02-TD01 Clear, Hard coating LCD digital displaye LG LCD Panel
Technical parameters for LB035Q02-TD01 :
<
| Panel Brand : | LG.Philips LCD |
| Panel Model : | LB035Q02-TD01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 3.5 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 70.08×52.56 mm |
| Outline : | 76.9×63.9×4.45 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 6S1P WLED |
| Signal Interface : | Digital RGB (8/18/24-bit) + SPI , 60 pins |
| Input Voltage : | 3.3/13/-9V (Typ.)(VCI/VGH/VGL) |
Backlight System:
Industrial standard- and semi-custom panels also available as complete display-kit solution including Display Solutions developed high quality and long-term available TFT LCD panel or Touch Screen.
<
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 6S1P |
| Lamp Shape : | 1 string |
| Lamp Current : | 20mA (Typ.) |
| Lamps Power Consumption : | 400mW (Typ.) |
| Interface Type : | Included in panel signal interface |
Company Information :
N&S is a manufacturer of capacitive touch panel and LCD/LCM display module with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used in medical,industrial control,handheld device,Smartwatch, POS,automotive,smart home and other fields.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
custom original industrail lcd display
1. customized is welcome
2. fast delivery time
3. ISO 9001 certificate
4. small size

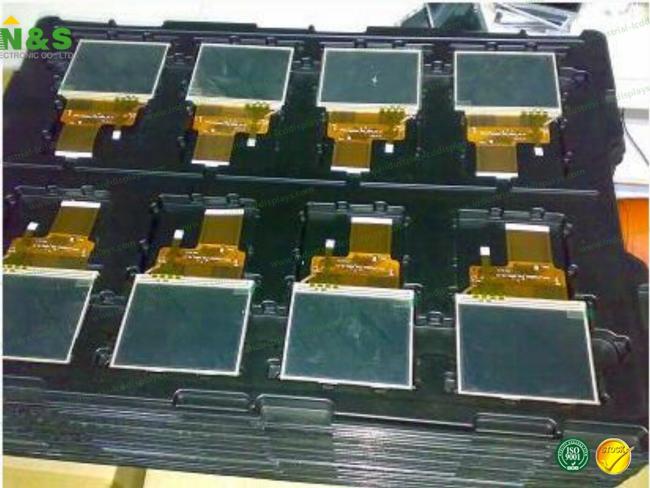

Pictures of LB035Q02-TD01 :
