Antiglare LG LCD Display Panel 15.6 Inch , Small Normal White LCD Panel LP156WH4-TLP1
Character lcd module 15.6 Inch LP156WH4-TLP1 dot matrix lcd display LG LCD Panel
Our company:
We have a good reputation in the trading of electronic components and have built up a wide and stable relationship with agency and distributors of electronic components.
Our products have won praise from customers worldwide. We not only offer our own stock, but also help clients to search the parts in Chinese market.
We have implemented a strict and complete quality control system which ensures that all parts we offer are of good quality.
We have experienced workers and professional equipment to inspect the parts before shipment and always inform clients the true conditions of the parts.
We would appreciate the opportunity of serving your component needs. You will be pleased to do business with us for our best services and high quality components.
Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
LG Display LP156WH4-TLP1 General Features :
Character lcd module 15.6 Inch LP156WH4-TLP1 dot matrix lcd display LG LCD Panel
<
| Panel Brand : | LG Display |
| Panel Model : | LP156WH4-TLP1 61 Compatible model |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 15.6 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 344.232×193.536 mm |
| Outline : | 359.3×209.5×5.5 mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface : | Antiglare |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Min.) |
| Display Colors : | 262K (6-bit) , CIE1931 60% |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 strings WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
Product line
Laptop lcd and led screen:from 4.5 inch to 18.4 inch
1.Size:8.9",10.1",10.2",11.1",11.6",12.1",13.1,13.3",14.0",14.1" ,15.0",15.4",15.6",16. 0",17.0",17.3",18.4"and so on.
2. Resolution:WSVGA,WXGA,WXGAHD,XGA,WXGA+,WXGA++
3. Backlight:LED,1CCFL,2CCFL
Features :
1. Three year standard warranty
2.500:1 contrast ratio, and 250-nit brightness (LCD panel)
3. High quality panel with 140° x 130° viewing angle
4. Fully RoHS compliant
5. Multilingual on-screen display (OSD)
6. Optional front mount and rack mount bezels
7. LED Backlight
8. Mounting options including rear-mount and VESA mount
9. Resistive Touchscreen Technology
LG Display LP156WH4-TLP1 Backlight System :
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 4 strings |
| Lamp Shape : | 4 strings |
| Lamp Life Time : | 12K(Min.) (Hours) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | Embedded (LED Driver) |
| Lamp Driver Board : | 7.0/12.0/21.0V (Min./Typ./Max.) |
| Lamp Driver Board : | 300/325mA (Typ./Max.) |
| Lamp Driver Board : | 3.6/3.9W (Typ./Max.) |

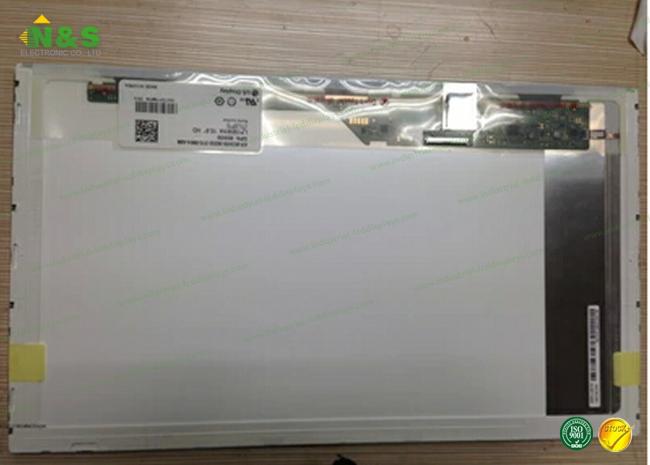

Details Picture for LG Display LP156WH4-TLP1:
