Wide Slim STN 5.7 KOE LCD Display SP14Q005 With Full Viewing Angle
monochrome lcd monitor 5.7" SP14Q005 Antiglare , STN Black/White mode KOE LCD Display
Our company:
We have a good reputation in the trading of electronic components and have built up a wide and stable relationship with agency and distributors of electronic components.
Our products have won praise from customers worldwide. We not only offer our own stock, but also help clients to search the parts in Chinese market.
We have implemented a strict and complete quality control system which ensures that all parts we offer are of good quality.
We have experienced workers and professional equipment to inspect the parts before shipment and always inform clients the true conditions of the parts.
We would appreciate the opportunity of serving your component needs. You will be pleased to do business with us for our best services and high quality components.
Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
Key Specifications/Special Features :
<
| Panel Model : | SP14Q005 |
| Panel Type : | FSTN-LCD , Panel |
| Panel Size : | 5.7 inch |
| Resolution : | 320×240 , QVGA |
| Display Mode : | STN, Black/White mode, Transmissive |
| Active Area : | 115.185×86.385 mm |
| Outline : | 167×109×10 mm |
| Surface : | Antiglare |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 25:1 (Typ.) |
| Display Colors : | Monochrome |
| Response Time : | 330/150 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/30/50 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 75Hz |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | Parallel Data (4-bit) , 14 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VDD) |
SP14Q005 Electronics Feature and Backlight System :
<
| Vertical Frequency : | 75Hz |
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
| Lamp Position : | Edge light type |
| Lamp Type : | CCFL |
| Lamp Amount : | 1 pcs |
| Lamp Life Time : | 50K(Typ.) (Hours) |
| Lamp Voltage : | 300V (Typ.) |
| Lamp Current : | 5.0±1mA |
| Lamp Operating Frequency : | 70/85KHz (Typ./Max.) |
| Lamp Startup Voltage : | 1000V (Min.)(Ta=+25℃) |
| Interface Type : | Connector |

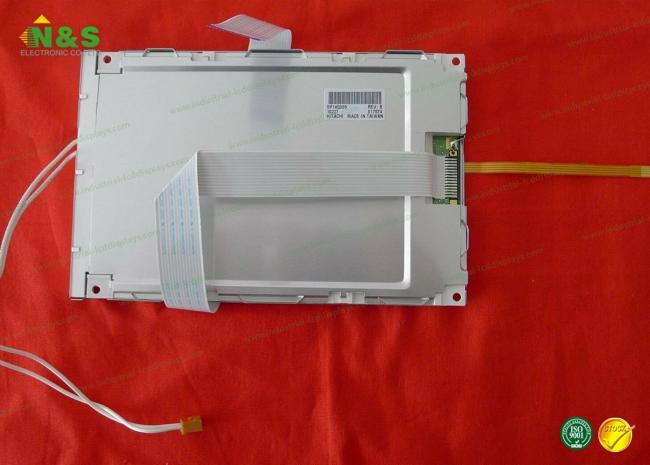

Pictures for SP14Q005 TFT LCD Module:
