HD TX18D46VM2BAA 7.0 Inch KOE LCD Display with 800*480 Resolution and WLED Lamp
TX18D46VM2BAA 7.0 Inch KOE LCD Display with 800*480 Resolution and WLED Lamp
Quick Details:
· KOE 7.0″ Color TFT LCD
· LED Backlight
· 640 x 480 Resolution
· 350 Nit Brightness
· HD LCD Screen
· Low Power Consumption
· 400 cd/m2 (Typ.) Brightness
Product General Features:
| Items | Speciation |
| Screen Diagonal(inch) | 7.0" |
| resolution | 800 x R.G.B.x480 |
| Active Area | 152.4*91.44 mm ( H*V) |
| Pixel Pitch(mm) | 0.1905*0.1905 mm (H*V) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| brightness | 400nits |
| Lamp Type | WLED |
| viewing angle | 70/70/65/65 |
| Display Mode | TN, Normally White, Transmissive |
| Nominal Input Voltage VDD(volt) | 3.3 typ. |
| Weight(gram) | 128 |
| Physical Size(mm) | 152.4(W) ×91.44(H) mm |
| Display Color | 262K ( 6-bit ) |
| Response Time | 20 ( Typ.) (Tr+Td) |
| Viewing Direction | 6 o'clock |
| White Variation | 1.43 (Max.)(9 Points) |
| ISO9001 Compliance | ISO9001 Compliance |
Our Advantages:
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

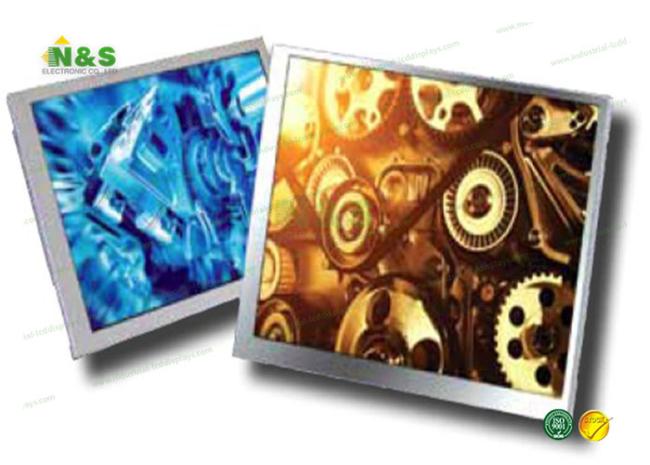

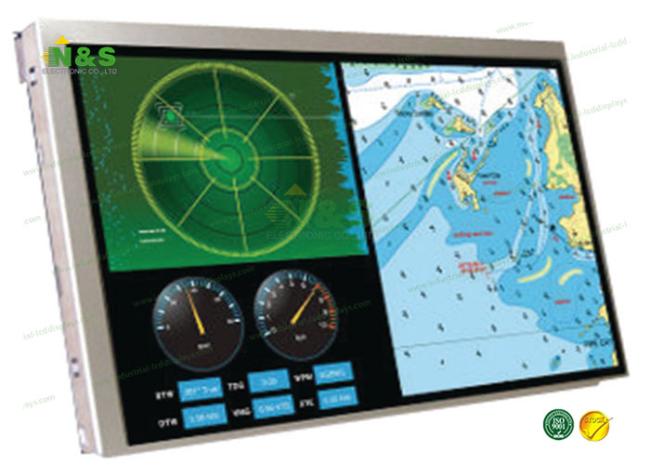

Details Picture for KOE TX18D46VM2BAA LCD Panel:
