Adjustable Brightness Controls 15.0" Hitachi LCD Panel Normally White TX38D01VM1AAA
Adjustable Brightness Controls 15.0" Hitachi LCD Panel Normally White TX38D01VM1AAA
Main Parameters :
<
| Panel Brand : | HITACHI |
| Panel Model : | TX38D01VM1AAA |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.1×228.1 mm |
| Outline : | 330×260 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 20/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/66/45/60 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Shipping:
1. Pls make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2. Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3. Shipment will be made within 3 business days after the payment received.
4. We will test each panel strictly before shipping and make very good package of it.
5. LCD will be sent by EMS/DHL/UPS/ according to the place or customer choice.
EMS takes around 10-15 business days to arrive.
DHL/UPS take around 3-5 business days to arrive.
Mechanical specifications:
1) The world-class manufacturer and integrator for customized LCD products from 1.44-inch to 12.1-inch with or w/o touch screen.
2) Boost of 20 years industry experience and sophisticated top rank customer service background
3) Stable long term service and delivery available relying on haier group company strength
4) With advanced management and brand vision as guideline for optimized LCD solution for customers
HITACHI TX38D01VM1AAA Backlight System :
<
| Lamp Position : | Edge light type (Top and Bottom) |
| Lamp Type : | CCFL |
| Lamp Amount : | 4 pcs |
| Lamp Shape : | Straight |
| Lamp Voltage : | 620V (Typ.) |
| Lamp Current : | 3.0/6.0/6.5mA (Min./Typ./Max.) |
| Lamp Operating Frequency : | 40/70KHz (Min./Max.) |
| Lamp Startup Voltage : | 1170/1370V (Max.)(Ta=+25/0℃) |
| Interface Type : | Connector |

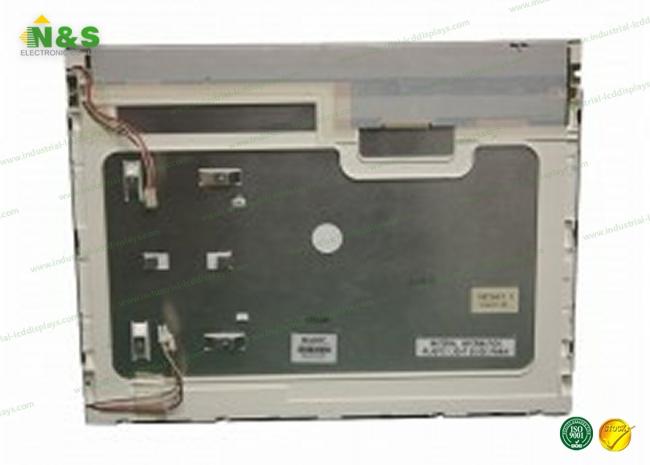

Pictures for HITACHI TX38D01VM1AAA :
