Normally White Antiglare 15.0 Inch AUO LCD Panel Landscape Type For AUO G150XG01 V0
Normally White Antiglare 15.0 Inch AUO LCD Panel Landscape Type For AUO G150XG01 V0
Quality:
We sell brand-new, original, undamaged, no dead pixels screen.
We test all of them to make sure their quality and make sure you are satisfied with them.
Technical parameters:
<
| Panel | Panel Brand : | AUO |
| Panel Model : | G150XG01 V0 | |
| Panel Type : | a-Si TFT-LCD , Panel | |
| Mechanical Features | Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 85 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.099×0.297 mm (H×V) | |
| Pixel Pitch : | 0.297×0.297 mm (H×V) | |
| Weight : | 1.10/1.15Kgs (Typ./Max.) | |
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 304.128×228.096 mm (H×V) | |
| Bezel Area : | 307.4×231.3 mm (H×V) | |
| Outline Dimension : | 326.5×253.5 mm (H×V) | |
| Outline Depth : | 9.95/12.0 (Typ./Max.) mm | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without | |
| Optical Features | Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 65% NTSC (CIE1931) | |
| Response Time : | 8.8/3.2 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/65/55 (Typ.)(CR≥10) (L/R/U/D) | |
| White color Chromaticity : | Wx:0.310; Wy:0.330 | |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Exchange :
You can exchange a new one without any reasons in 7 days,counting from the shipping day.
We will Not be responsible for the cost incurred shipping products.
Shipment:
Usually items will be sent within 24 hours after we received a verified payment.
When you receive your goods, please check if the units are in good condition.
Free shipping by China Post takes 7 - 30 days.
Send by HK post takes 5 - 20 days
Send by DHL, Fedex, UPS takes 3-5 days.
If you need the item in a hurry, please choose Express instead of China Post.
We can provide one-day shipping to USA by Express if you need.
Any Taxes or duties will be charged on your own if it occured.
More Information For N&S electronic Co.,LTD:
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China from 2010, you can get the most competitive price for real products.
2. Quality to be ensure:
All the panels are 100% original and brand new, no fake panels exists, so from N&S you can enjoy the real panels directly from original factory; Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them.
3.Quickly delivery:
We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from HKSEBO you can get more convenient delivery;
4.long-term partner:
* Products are sold to more than 20 countries, so from N&S you can get more stable supplying promise;
5. Super After-Sale service:
N&S will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;
6.the best TFT LCD solution:
*more tft lcd model detail information including,size, resolution, brightness, operating temperature or life time etc.

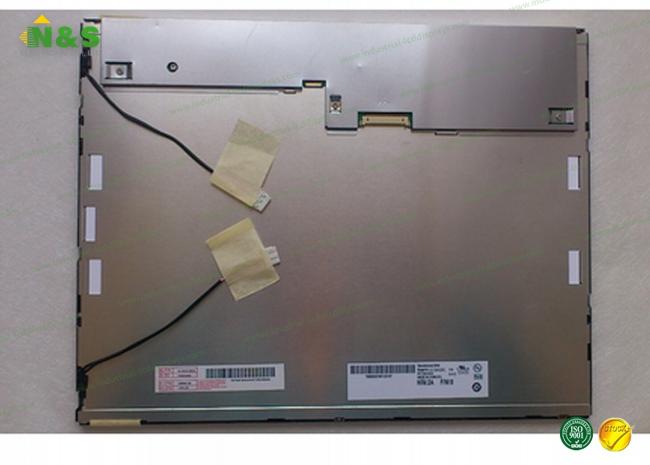

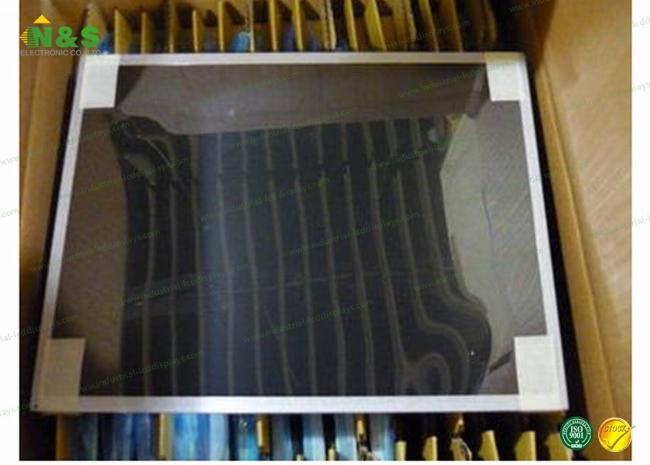

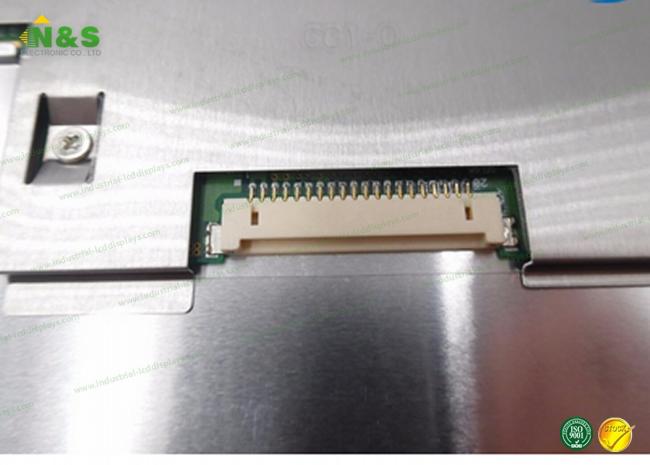

Pictures of AUO G150XG01 V0 Display:
