Antiglar 10.4 Inch TFT LCD Panel PSA Normally Black G104XVN01.0 1024 * 768 EPD Screen
Antiglar 10.4 Inch TFT LCD Panel PSA Normally Black G104XVN01.0 1024 * 768 EPD Screen
Applications:
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
Quick Detail:
<
| AUO G104XVN01.0 | ||
| General Features | Panel Brand : | AUO |
| Panel Type : | a-Si TFT-LCD , Panel | |
| Panel Size : | 10.4 inch | |
| Resolution : | 1024(RGB)×768 , XGA | |
| Display Mode : | PSA, Normally Black, Transmissive | |
| Active Area : | 210.43×157.82 mm | |
| Outline : | 238.6×175.8×7 mm | |
| Surface : | Antiglare, Hard coating (3H) | |
| Brightness : | 470 cd/m² (Typ.) | |
| Contrast Ratio : | 3000:1 (Typ.) | |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% | |
| Response Time : | 20/10 (Typ.)(Tr/Td) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 2 strings WLED Embedded (LED Driver) | |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 30 pins | |
| Input Voltage : | 3.3V (Typ.) | |
| Backlight System | Lamp Position : | Edge light type |
| Lamp Type : | WLED | |
| Lamp Amount : | 2 strings | |
| Lamp Shape : | 2 strings | |
| Lamp Life Time : | 80K(Typ.) (Hours) | |
| Lamp Replaceable : | No | |
| Lamp Voltage : | 29.7/32.4V (Typ./Max.) | |
| Lamp Current : | 80mA (Typ.) | |
| Lamps Power Consumption : | 4.75W (Typ.) | |
| Interface Type : | Connector | |
Trade Terms:
Payment terms: 100% by T/T when order confirmed
Lead time: 2-5 working days according to the order quantity
Sample lead time: within 3 working days after we get payment.
The price based on FOB Shenzhen,we will offer best discount according to order quantity.
Warranty:offer free spare parts within ONE year.
Offer OEM service for batch orders,to print logo and design box.

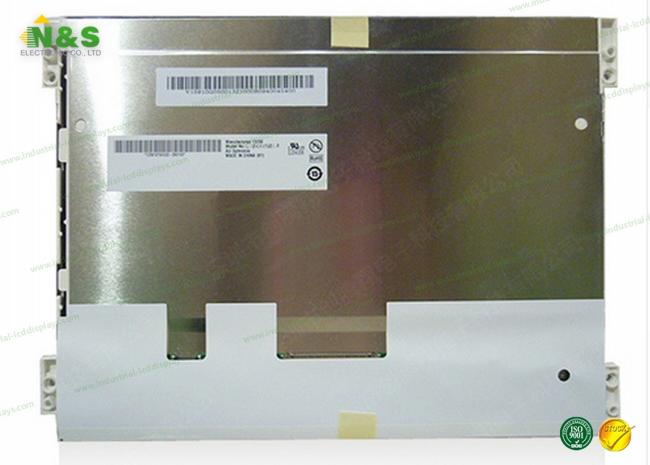

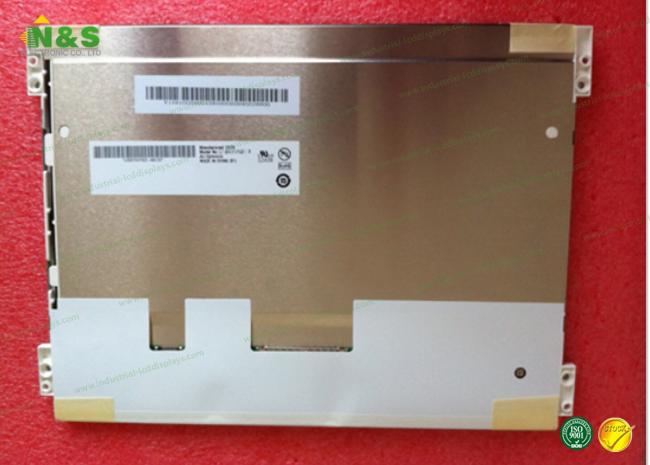

Pictures of AUO G104XVN01.0 Display:
