AUO 5.7 inch TFT LCD Screen G057QN01 V0 QVGA 320 (RGB)*240 Antiglare Hard coating (3H)
AUO 5.7 inch TFT LCD Screen G057QN01 V0 QVGA 320 (RGB)*240 Antiglare Hard coating (3H)
Mechanical Features :
<
General Features |
Panel Brand : | AUO |
| Panel Model : | G057QN01 V0 | |
| Panel Type : | a-Si TFT-LCD , Panel | |
| Panel Size : | 5.7 inch | |
| Resolution : | 320(RGB)×240 , QVGA | |
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 115.2×86.4 mm | |
| Outline : | 144×104.6×12.8 mm | |
| Surface : | Antiglare, Hard coating (3H) | |
| Brightness : | 400 cd/m² (Typ.) | |
| Contrast Ratio : | 800:1 (Typ.) | |
| Display Colors : | 262K (6-bit) , CIE1931 50% | |
| Response Time : | 15/10 (Typ.)(Tr/Td) | |
| Viewing Angle : | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 3 strings WLED Without Driver | |
| Signal Interface : | CMOS (1 ch, 6-bit) , 33 pins | |
| Input Voltage : | 3.3V (Typ.) | |
Backlight System |
Lamp Position : | Edge light type (Top side) |
| Lamp Type : | WLED | |
| Lamp Amount : | 3 strings | |
| Lamp Shape : | 3 strings | |
| Lamp Life Time : | 50K(Typ.) (Hours) | |
| Lamp Replaceable : | Replaceable | |
| Lamp Voltage : | 26.8/32.0V (Typ./Max.) | |
| Lamp Current : | 15/20mA (Typ./Max.) | |
| Lamps Power Consumption : | 1.2W (Typ.) | |
| Interface Type : | Connector |
Why Choose N&S?
1. We have a good reputation in the trading of electronic components and have built up a wide and stable relationship with agency and distributors of electronic components.
2. Our products have won praise from customers worldwide. We not only offer our own stock, but also help clients to search the parts in Chinese market.
3. We have implemented a strict and complete quality control system which ensures that all parts we offer are of good quality.
4. We have experienced workers and professional equipment to inspect the parts before shipment and always inform clients the true conditions of the parts.
5. We would appreciate the opportunity of serving your component needs. You will be pleased to do business with us for our best services and high quality components.
Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
6. Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
Payment methods?
Payment terms: 100% by T/T when order confirmed
Lead time: 2-5 working days according to the order quantity
Sample lead time: within 3 working days after we get payment.
The price based on FOB Shenzhen,we will offer best discount according to order quantity.
Warranty:offer free spare parts within ONE year.
Offer OEM service for batch orders,to print logo and design box.
Payment and Shipment :
1. We accept Alipay, Western Union, T/T, etc. All major credit cards are accepted through secure payment processor ESCROW
2. Item will be shipped out within 1-3 days.
3. Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.
4. We are not responsible for the possibly additional import duties, remote area charges, taxes or other Customs related fee.
5. Delivery time:
--via DHL, Fedex, UPS: 3-7 working days
--via EMS: 7-15 working days
--via Air Mail or Parcel: 10-30 working days (sometimes longer)
NOTICE: delivery time should not be considered as an aspect of your feedback.
Guarantee and Refund :
1. All items are in good condition.
2. If the item is defective ( rarely happen ), please inform us within 3 days after you receive it and return it within warranty period ( 12 months )
3. Returned items should have original packaging and in good condition if possible. Please provide us the tracking number and the returning reason.

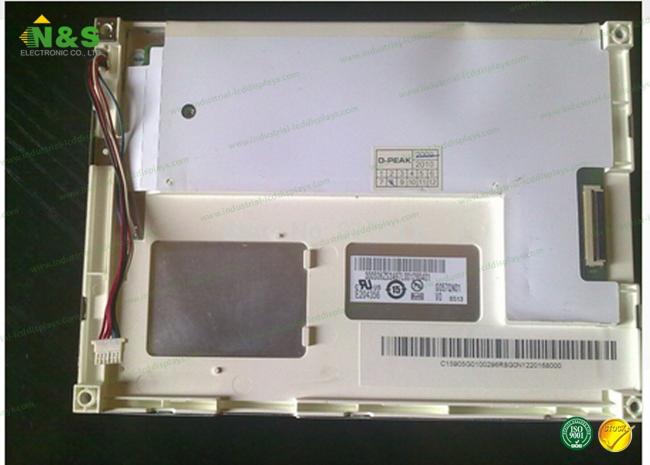

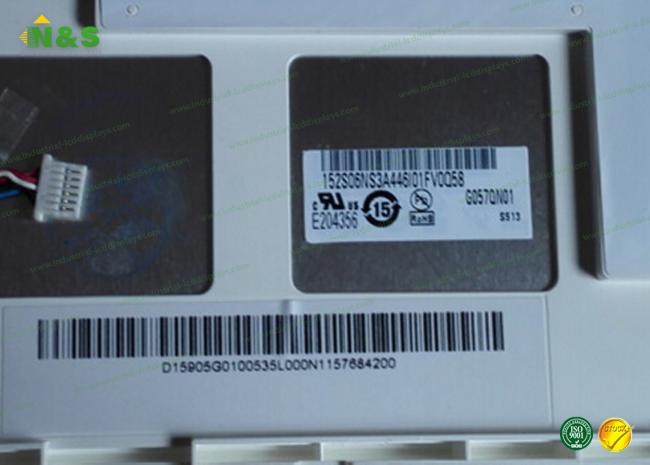

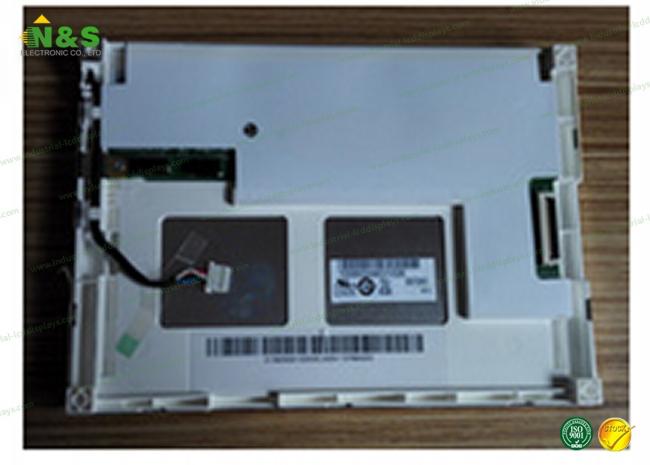

Pictures of AUO G057QN01 V0 LCD Display:
