Hard coating 7.0 inch TFT Display Modules LD070WU2- SM01, 60Hz LCD LG Monitor
Hard coating 7.0 inch TFT Display Modules LD070WU2- SM01, 60Hz LCD LG Monitor
Specification of 7.0 inch LG Monitor LD070WU2-SM01 tft lcd :
| Panel Size : | 7.0 inch |
| Dot Resolution : | 1200(RGB)×1920 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 322 PPI |
| Aspect Ratio : | 10:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.02625×0.07875 mm (H×V) |
| Pixel Pitch : | 0.07875×0.07875 mm (H×V) |
| Weight : | 75g (Max.) |
| Surface : | Hard coating |
| Active Area : | 94.5×151.2 mm (H×V) |
| Outline Dimension : | 104.52×161.87 mm (H×V) |
| Outline Depth : | 2.4 (Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Related Products:
Industrial TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4", , etc.
Our Advantages for LCD panel:
| 1 | FOG automatical device can ensure the capacity of 1000,000 per month. |
| 2 | MOQ can be 100pcs, lead time of standard products is 20 days. |
| 3 | Reliability test and full examination to ensure the high quality of the display. |
| 4 | OEM&ODM are provided for TFT/TN LCD/Plastic Moulding. |
| 5 | Strictly ISO quality management system. |
| 6 | Mature and Professional R&D and after service. |
| 7 | Various cooperation experience with big brands |
N&S supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compaired with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc.
Optical Features :
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 70% NTSC (CIE1931) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |

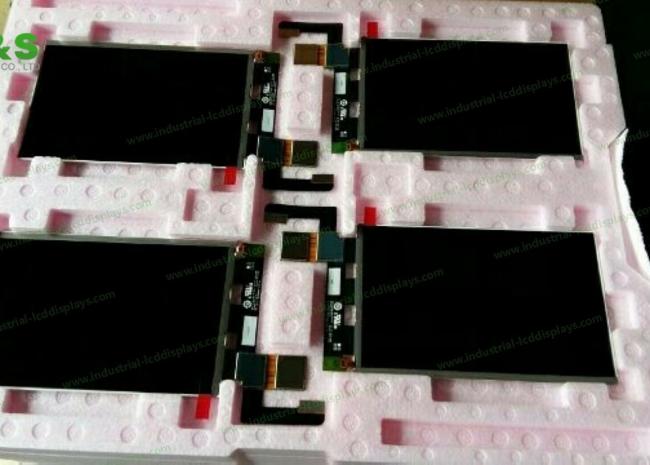

Details Pictures for the LD070WU2-SM01 Screen Display Panel:
