LS037V7DW01 Sharp LCD Panel , 3.7 inch sharp flat screen WLED Lamp Type
LS037V7DW01 Sharp LCD Panel , 3.7 inch sharp flat screen WLED Lamp Type
SHARP LS037V7DW01 General Features
| Panel Brand : | SHARP |
| Panel Model : | LS037V7DW01 |
| Panel Type : | CG-Silicon , Panel |
| Panel Size : | 3.7 inch |
| Resolution : | 480(RGB)×640 , VGA |
| Display Mode : |
Normally Black, Transflective |
| Active Area : | 56.16×74.88 mm |
| Outline : | 65×89.2×6.4 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 165 cd/m² (Typ.) |
| Contrast Ratio : | 200:1 (Typ.)(Transmissive) 2:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 35% |
| Response Time : | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 51 pins |
| Input Voltage : | 3.3V (Typ.)(VSHD) |
SHARP LS037V7DW01 Mechanical Features
| Panel Size : | 3.7 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 217 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.039×0.117 mm (H×V) |
| Pixel Pitch : | 0.117×0.117 mm (H×V) |
| Weight : | 48g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 56.16×74.88 mm (H×V) |
| Bezel Area : | 59.8×78.5 mm (H×V) |
| Outline Dimension : | 65×89.2 mm (H×V) |
| Outline Depth : | 4.4/6.4 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
Our advantage
Q1: How can the payment,product quality and delivery time be guaranteed?
A: All our transactions are assured by Alibaba Trade Assurance,you will get all your fund back if any quality or lead time issue arises.
Q2: What's the quality of your products?
A: Various quality such as OEM New,AAA Grade,etc.are available to meet your different requirements.
Q3: What is your return and refund policy?
A: We provide you excellent after-sales services,and promise you 6-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A: Yes,sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire viaSkype,Email,whatsapp or telephone.
Q7: How can I get an Ecatalog?
A: Please check Ecatalog through www.rewatechnology.com for more products' prices,pictures etc.

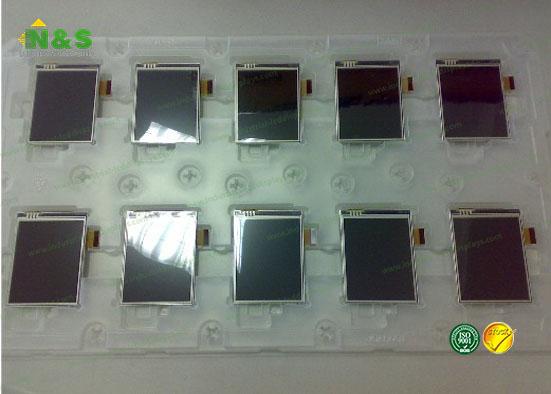

Details Pictures for LS037V7DW01
