5.0 inch industrial touch screen display 110.88×62.83 mm Outline 116×72.45 mm
5.0 inch industrial touch screen display 110.88×62.83 mm Outline 116×72.45 mm
Why Choose US
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 13 years experience in intelligent controller R&D and manufacturing.
6. Strong R&D term supports perfect customized projects.
7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.
8. Fabulous after-sale service.
Packing & Delivery for our LCD Screen Panel Replacements
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
HannStar HSD050I9W1-C00-0299 General Features
| Panel Brand : | HannStar |
| Panel Model : | HSD050I9W1-C00-0299 |
| Panel Type : | a-Si TFT-LCD , CELL |
| Panel Size : | 5.0 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 110.88×62.83 mm |
| Outline : | 116×72.45 mm |
| Glass Depth : | 0.50+0.50 mm |
| Transmissivity : | 7.33% (Typ.)(with Polarizer) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 45% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
HannStar HSD050I9W1-C00-0299 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 0 cd/m² |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Transmissivity : | 7.33% (Typ.)(with Polarizer) |

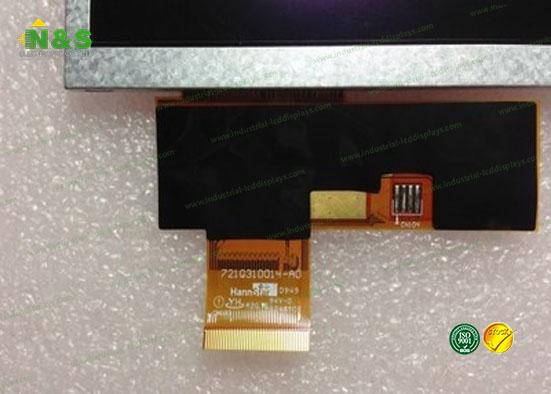

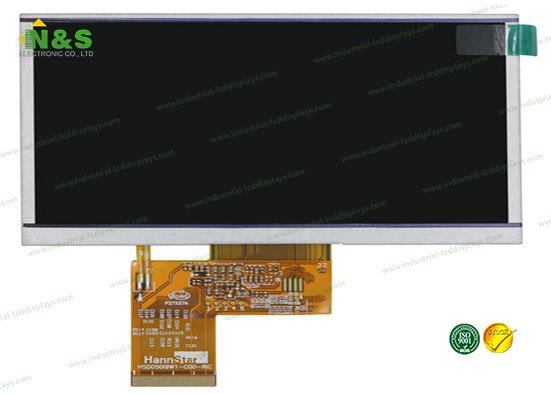

Details Pictures for Industrial LCD Displays
