HannStar HSD080IDW1-A00 General Features
| Panel Brand : | HannStar |
| Panel Model : | HSD080IDW1-A00 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 8.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 176.64×99.36 mm |
| Outline : | 192.8×116.9 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S6P WLED |
| Signal Interface : | TTL (1 ch, 6/8-bit) , 60 pins |
| Input Voltage : | 3.0/10/15/-9V (Typ.)(VCC/AVDD/VGH/VGL) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
HannStar HSD080IDW1-A00 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.43 (Max.)(9 points) |
HannStar HSD080IDW1-A00 Mechanical Features
Panel Size : 8.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 116 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0736×0.2070 mm (H×V)
Pixel Pitch : 0.2208×0.2070 mm (H×V)
Weight : 240g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 176.64×99.36 mm (H×V)
Bezel Area : 180.1×103.4 mm (H×V)
Outline Dimension : 192.8×116.9 mm (H×V)
Outline Depth : 6.4±0.3 mm
Holes & Brackets : Side mounting holes (4-M2)
Landscape or Portrait : Landscape type
Touch Panel : Without

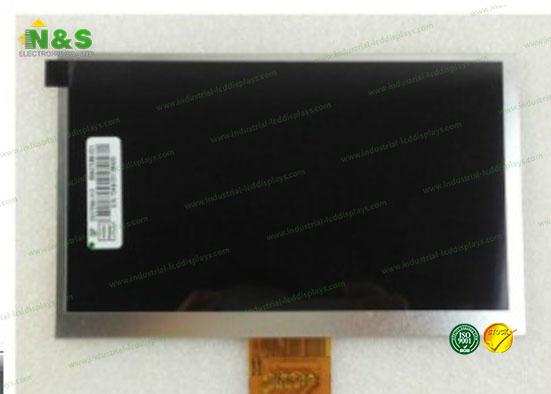

Details Pictures for HannStar HSD080IDW1-A00
