ISO9001 Innolux LCD Panel , 10.2 inch Anti Glare LCD Screen 250 cd / m²
ISO9001 Innolux LCD Panel , 10.2 inch Anti Glare LCD Screen 250 cd / m²
INNOLUX AT102TN03 V.9 General Features
| Panel Brand : | INNOLUX |
| Panel Model : | AT102TN03 V.9 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.2 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 222×132.48 mm |
| Outline : | 235×145.8×6.3 mm |
| Surface : | Antiglare |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S10P WLED |
| Signal Interface : | TTL (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
INNOLUX AT102TN03 V.9 Mechanical Features
| Panel Size : | 10.2 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0925×0.2760 mm (H×V) |
| Pixel Pitch : | 0.2775×0.2760 mm (H×V) |
| Weight : | 325g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 222×132.48 mm (H×V) |
| Bezel Area : | 225.3×135.7 mm (H×V) |
| Outline Dimension : | 235×145.8 mm (H×V) |
| Outline Depth : | 6.1±0.3 mm |
| Holes & Brackets : | Side mounting holes (6-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What We Can Do for You
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Company Strength
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time

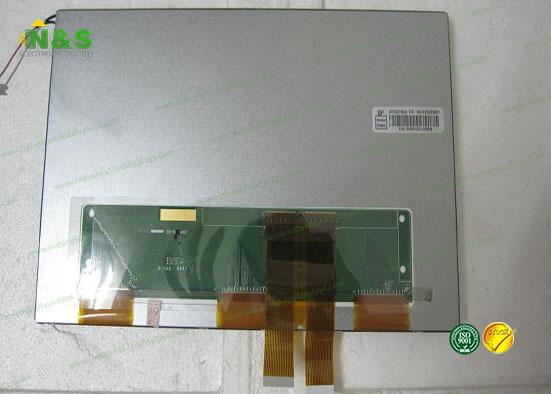

Details Pictures for Innolux LCD Panel
