BOE 7.0 inch Industrial LCD Displays For Advertising Machine Kiosks , Frequency 60Hz
BOE 7.0 inch Industrial LCD Displays For Advertising Machine Kiosks , Frequency 60Hz
BOE BA070WS1-100 General Features
Panel Brand : BOE
Panel Model : BA070WS1-100 1 Compatible model
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 1024(RGB)×600 , WSVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 153.6×90 mm
Outline : 167.25×104.65×3 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 50%
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S6P WLED
BOE BA070WS1-100 Mechanical Features
| Panel Size : | 7.0 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 169 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.050×0.150 mm (H×V) |
| Pixel Pitch : | 0.150×0.150 mm (H×V) |
| Weight : | 110g (Typ.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 153.6×90 mm (H×V) |
| Bezel Area : | 156.2×92.6 mm (H×V) |
| Outline Dimension : | 167.25×104.65 mm (H×V) |
| Outline Depth : | 2.8±0.2 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
BOE BA070WS1-100 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.67 (Max.)(5/13 points) |

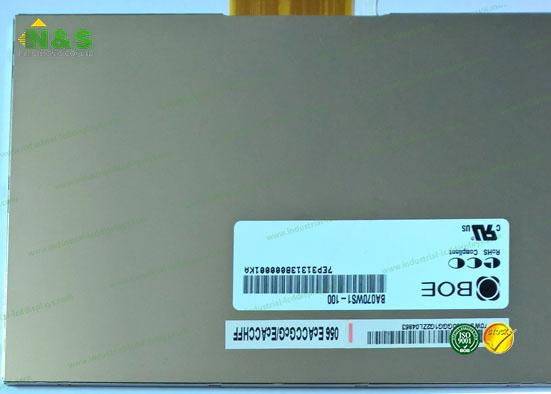

Details Pictures for BOE BA070WS1-100:
