CPT CLAA057VA01CT General Features
| Panel Brand : | CPT |
| Panel Model : | CLAA057VA01CT |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 5.7 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 116.16×87.12 mm |
| Outline : | 127×98.43×8.15 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 180 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | TTL (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
CPT CLAA057VA01CT Backlight System
Lamp Position : Edge light type
Lamp Type : WLED
Lamp Life Time : 20K(Typ.) (Hours)
Interface Type : Included in panel signal interface
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board : 5.0V (Typ.)
Lamp Driver Board : 300/350mA (Typ./Max.)
CPT CLAA057VA01CT Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 180 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.43 (Typ./max.)(9 points) |

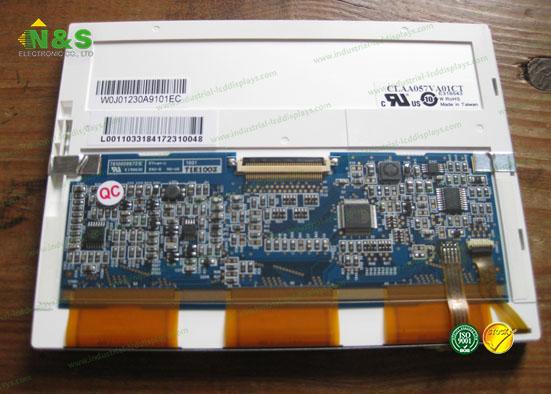

Details Pictures for CPT CLAA057VA01CT
