A070VW01 V0 TFT LCD Module 262K Display Colors 1 pcs CCFL Lamp Type
A070VW01 V0 TFT LCD Module 262K Display Colors 1 pcs CCFL Lamp Type
Packing & Delivery for our LCD Screen Panel Replacements
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. icked up by forward and delivered by express services.
Company Strength
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
AUO A070VW01 V0 General Features
| Panel Brand : | AUO |
| Panel Model : | A070VW01 V0 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 165×104×6.3 mm |
| Surface : | Antiglare |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | TTL (1 ch, 6-bit) , 50 pins |
| Input Voltage : | 3.3/8.8/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
AUO A070VW01 V0 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |

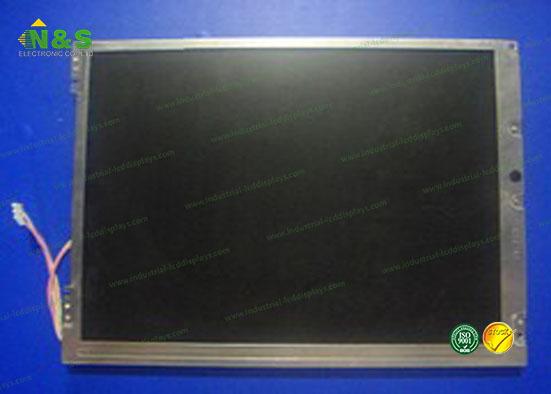

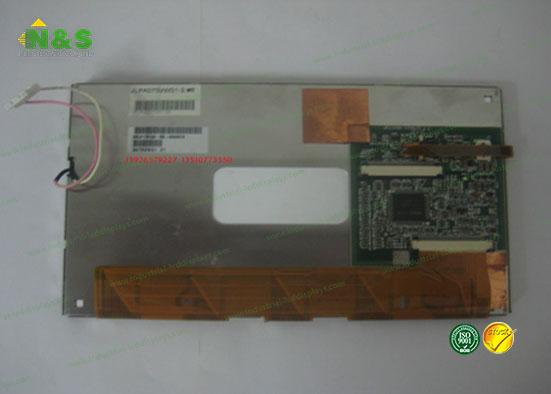

Details Pictures for AUO LCD Panel A070VW01 V0
