TS056KAAAD02-00 5.6 inch Tianma LCD Displays 113.28×84.708 mm Active Area
TS056KAAAD02-00 5.6 inch Tianma LCD Displays 113.28×84.708 mm Active Area
We Can Do for You
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
TIANMA TS056KAAAD02-00 Backlight System
Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 2S7P
Lamp Shape : Array
Lamp Voltage : 6.4V (Typ.)
Lamp Current : 140mA (Typ.)
Lamps Power Consumption : 896mW (Typ.)
Interface Type : Connector
TIANMA TS056KAAAD02-00 General Features
| Panel Brand : | TIANMA |
| Panel Model : | TS056KAAAD02-00 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 5.6 inch |
| Resolution : | 320(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 113.28×84.708 mm |
| Outline : | 126.5×100 mm |
| Surface : | Antiglare |
| Brightness : | 330 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | Full color |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2S7P WLED Without Driver |
| Signal Interface : | TFT Specific Analog RGB , 26 pins |
| Input Voltage : | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
TIANMA TS056KAAAD02-00 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 330 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | Full color () |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |

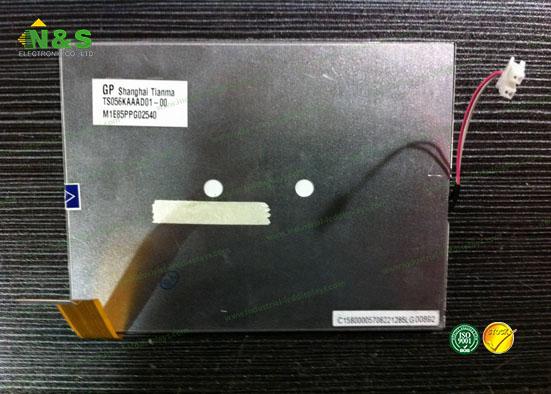

Details Pictures for Tianma LCD Displays TS056KAAAD02-00
