CPT CLAA080XA12LE 8.0 inch small color lcd display 60Hz Frequency
CPT CLAA080XA12LE 162.048×121.536 mm Active Area 183×141×3.7 mm Outline 60Hz Frequency
CPT CLAA080XA12LE General Features
| Panel Brand : | CPT |
| Panel Model : | CLAA080XA12LE |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 8.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 162.048×121.536 mm |
| Outline : | 183×141×3.7 mm |
| Surface : | Glare (Haze 0%), Hard coating |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 75/70/75/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S9P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 40 pins |
| Input Voltage : | 3.3/9.6/18/-6V (Typ.)(VDD/AVDD/VGH/VGL) |
CPT CLAA080XA12LE Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 75/70/75/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 4:30 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
Company Strength
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
Packing & Delivery for our LCD Screen Panel Replacements
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.

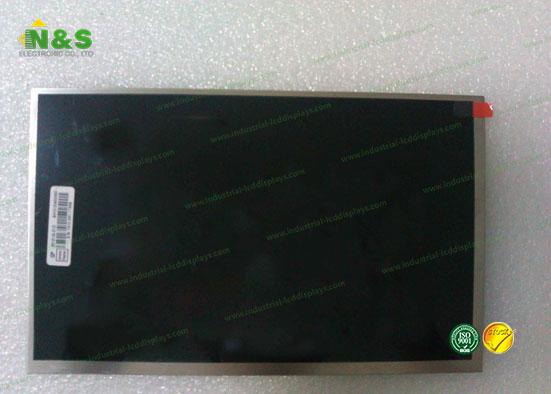

Details Pictures for CPT CLAA080XA12LE
