Clear 230 Brightness Sharp LCD Panel , ASV LQ043T3DX04 lcd screen small panels
Clear 230 Brightness Sharp LCD Panel , ASV LQ043T3DX04 lcd screen small panels
Technical parameters for SHARP LQ043T3DX04 :
| Display Mode : | ASV, Normally Black, Transmissive |
| Brightness : | 230 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.309; Wy:0.347 |
Our Product Advantages:
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480(RGB)×272 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.066×0.198 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 50g (Typ.) |
| Surface : | Clear, Hard coating |
| Active Area : | 95.04×53.856 mm (H×V) |
| Bezel Area : | 98.7×57.5 mm (H×V) |
| Outline Dimension : | 105.5×67.2 mm (H×V) |
| Outline Depth : | 3.95 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Industrial standard- and semi-custom panels also available as complete display-kit solution including Display Solutions developed high quality and long-term available TFT LCD panel or Touch Screen.
We are professional Industrial Panel Distributor of the following manufacturers: AUO, LG, Innolux, Sharp, NEC, BOE and More.
Specifications:
custom original industrail lcd display
1. customized is welcome
2. fast delivery time
3. ISO 9001 certificate
4. small size
Descriptions for SHARP LQ043T3DX04:
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 7S1P |
| Lamp Shape : | 1 string |
| Lamp Voltage : | 24.5/25.8V (Typ./Max.) |
| Lamp Current : | 18/28mA (Typ./Max.) |
| Interface Type : | FPC |

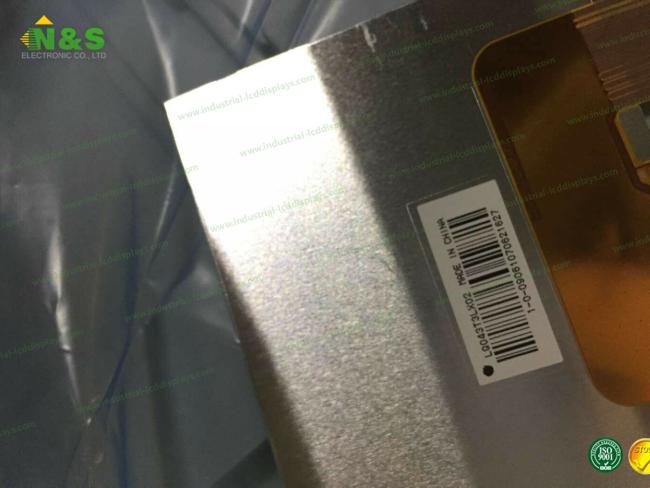

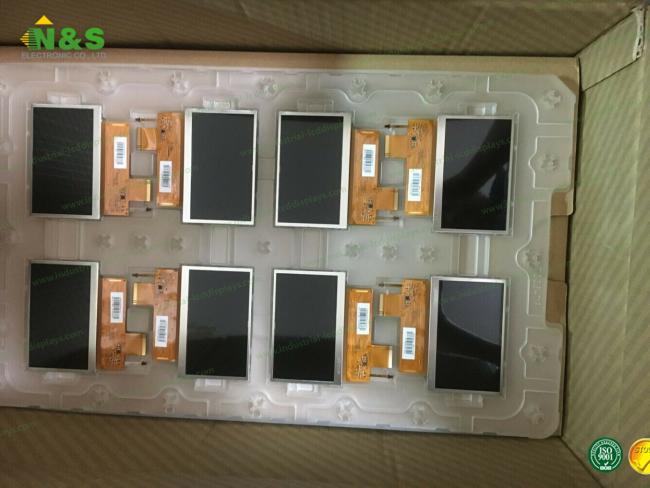

Details Pictures for SHARP LQ043T3DX04:
