CPT CLAA070MA0ACW 7.0 inch mini lcd display 500 / 1 Contrast Ratio
CPT CLAA070MA0ACW 7.0 inch 141.6×106.2 mm Active Area 154×119.2×5.4 mm Outline 500:1 Contrast Ratio
CPT CLAA070MA0ACW General Features
| Panel Brand : | CPT |
| Panel Model : | CLAA070MA0ACW |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 141.6×106.2 mm |
| Outline : | 154×119.2×5.4 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S6P WLED Without Driver |
| Signal Interface : | TTL (1 ch, 6/8-bit) , 60 pins |
| Input Voltage : | 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
CPT CLAA070MA0ACW Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
CPT CLAA070MA0ACW Backlight System
Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 3S6P
Lamp Shape : Array
Lamp Life Time : 10K(Min.) (Hours)
Lamp Voltage : 8.7/9.9/10.95V (Min./Typ./Max.)
Lamp Current : 120mA (Typ.)
Lamps Power Consumption : 1.188W (Typ.)
Interface Type : Connector
Packing & Delivery for our LCD Screen Panel Replacements
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.

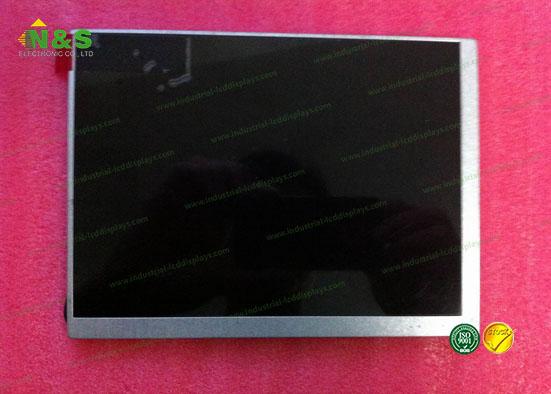

Details Pictures for CPT
