9.7 inch Industrial LCD Displays 210.21×166.3×5.85 mm AVIC TM097TDH02
9.7 inch Industrial LCD Displays 210.21×166.3×5.85 mm AVIC TM097TDH02
Company Strength
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
We Can Do for You
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
AVIC TM097TDH02 General Features
| Panel Brand : | AVIC |
| Panel Model : | TM097TDH02 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 9.7 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 196.608×147.456 mm |
| Outline : | 210.21×166.3×5.85 mm |
| Surface : | Clear |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/60/70/70 (Typ.)(CR≥10) (L/R/U/D) |
AVIC TM097TDH02 Mechanical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/60/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 3 o'clock |
| White color Chromaticity : | Wx:0.311; Wy:0.316 |
| White Variation : | 1.33 (Typ.)(9 points) |

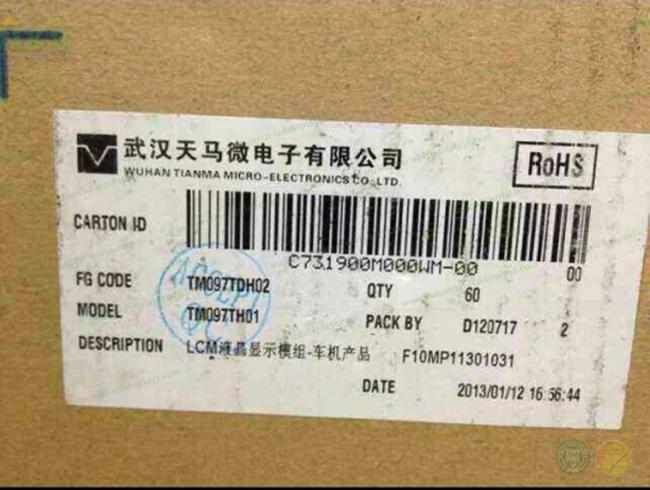

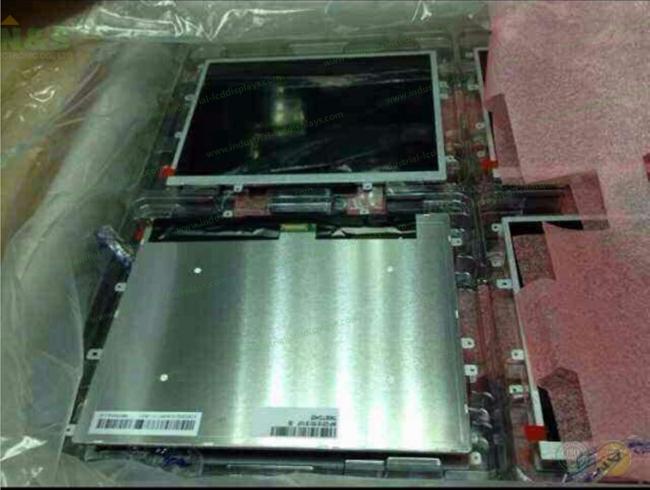

Details Pictures for AVIC
