LQ190E1LW02 19.0 inch Sharp LCD Panel , small lcd monitor screen
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
1-3 Working Days
Brand:
Sharp LCD Panel
Product Description
LQ190E1LW02 19.0 inch Sharp LCD Panel , small lcd monitor screen
Sharp LCD Panel LQ190E1LW02 General Features
| Display Mode : | ASV, Normally Black, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 900 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 12 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43 (Max.)(9 Points) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
Sharp LCD Panel LQ190E1LW02 Mechanical Features
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 2.80Kgs (Max.) |
| Surface : | Antiglare (Haze 40%), Hard coating (2H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 382.32×307.06 mm (H×V) |
| Outline Dimension : | 404.2×330 mm (H×V) |
| Outline Depth : | 20.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

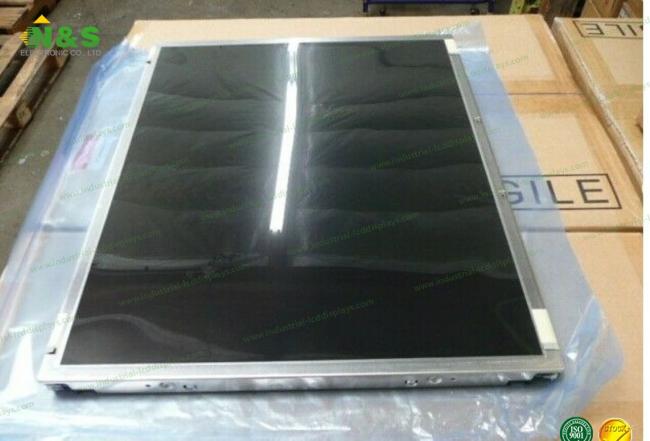

Details Pictures for Sharp LCD Panel LQ190E1LW02
